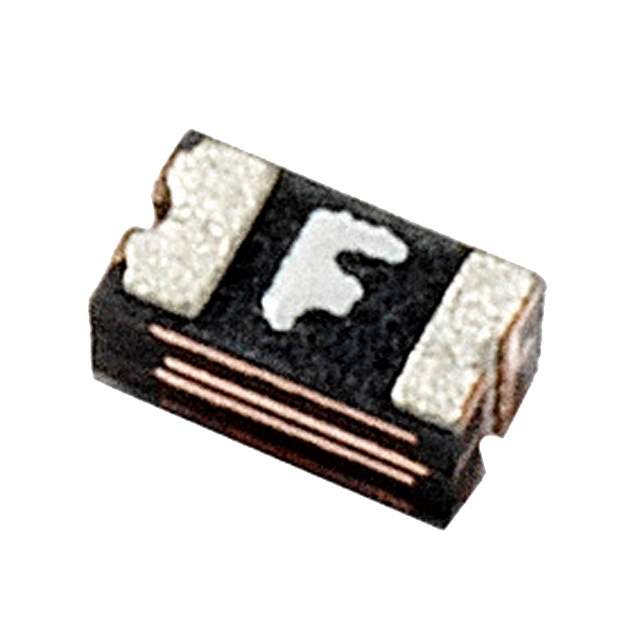

0603L010YR Real Image
Same model may have multiple batches, images only for reference.

0603L010YR

Part No 0603L010YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 15V .10A SMD 0603
Datasheet
0603L010YR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 300mA
Time to Trip 1s
Resistance - Initial (Ri) (Min) 900 mOhm
Resistance - Post Trip (R1) (Max) 6 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Max) 0.030" (0.75mm)
Approvals cURus, TUV
Win Source Part Number 1000294-0603L010YR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian 0603L010YR CAD Model

Description

The 1000294-0603L010YR is a polymeric circuit protection type with SMD (SMT) mounting.

  • Voltage Max: 15V
  • Current Max: 40A
  • Current Hold (Ih) (Max): 100mA
  • Current Trip (It): 300mA
  • Time to Trip: 1s
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Resistance Initial (Ri) (Min): 900 mOhm
  • Resistance Post Trip (R1) (Max): 6 Ohm
  • Category: Circuit Protection
  • Lifecycle Status: Active
  • Common Applications: Computers & Computer Peripherals, Consumer Electronics, and Portable Devices
