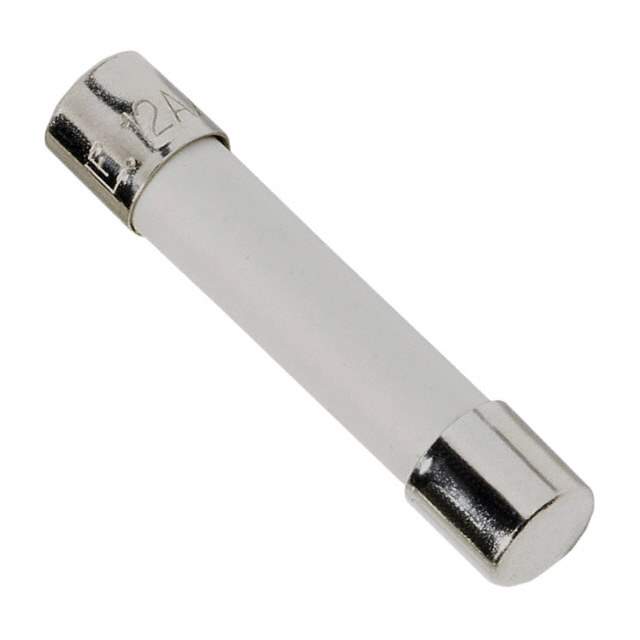

0505020.MXP Real Image
Same model may have multiple batches, images only for reference.

0505020.MXP

Part No 0505020.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 20A 500VAC/VDC 3AB / Axial Lead & Cartridge Fuses 3AB > Fast-Acting > 505 Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20A
Voltage Rating - AC 500V
Voltage Rating - DC 500V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Style Holder
Breaking Capacity at Rated Voltage 30kA AC, 20kA DC
Melting I2t 101
Approvals CE, cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0056 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809640-0505020.MXP
Ultra Librarian 3D Model Ultra Librarian 0505020.MXP CAD Model

Description

Littelfuse Inc. 0505020.MXP Ceramic Cartridge Fuses manufactured by Littelfuse Inc.

  • Current Rating: 20A
  • Breaking Capacity: 30kA AC, 20kA DC @ rated voltage
