Same model may have multiple batches, images only for reference.

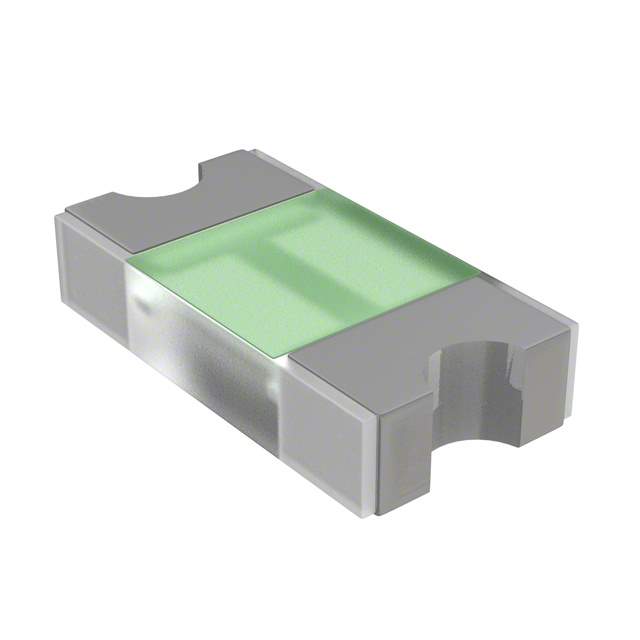

049402.5NR Real Image
Same model may have multiple batches, images only for reference.

049402.5NR

Part No 049402.5NR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 2.5A 32VAC/VDC 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package 0603 (1608 Metric)
Mounting Style SMD
Breaking Capacity at Rated Voltage 35A
Melting I2t 0.144
Approvals CSA, UR
Temperature Range - Operating -50°C ~ 90°C
Parts Dimension 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm)
DC Cold Resistance 0.022 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 750892-049402.5NR
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 049402.5NR CAD Model

Description

The Littelfuse Inc. 750892-049402.

  • Package Type: 0603 (1608 Metric)
  • Packaging: Reel
  • Mounting Style: SMD
  • Voltage Rating - AC: 32V
  • Voltage Rating - DC: 32V
  • DC Cold Resistance: 0.022 Ohms
  • Current Rating (Amps): 2.5A
  • Supply and Demand Status: Limited
  • Manufacturer: Littelfuse Inc.
