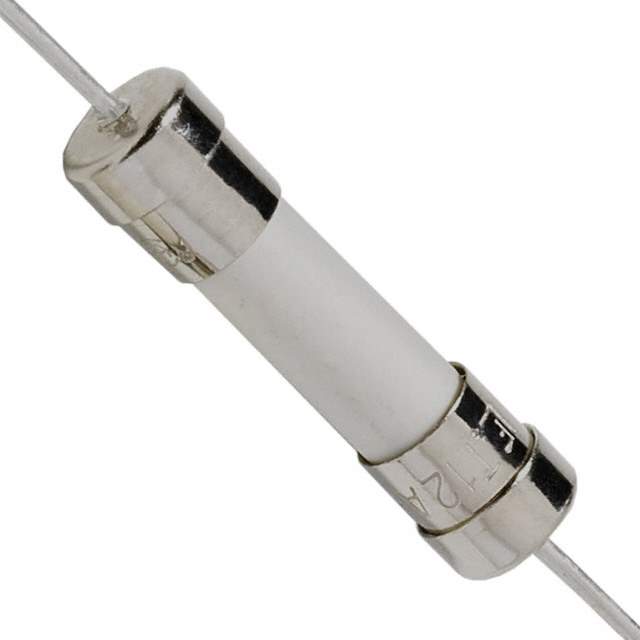

04773.15MXEP Real Image
Same model may have multiple batches, images only for reference.

04773.15MXEP

Part No 04773.15MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 500VAC 400VDC / Axial Lead & Cartridge Fuses
Datasheet
04773.15MXEP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A AC, 1.5kA DC
Melting I2t 50.109
Approvals cULus, PSE, SEMKO, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.0277 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808587-04773.15MXEP
Ultra Librarian 3D Model Ultra Librarian 04773.15MXEP CAD Model

Description

The Littelfuse Inc. 747085 is a slow blow cartridge ceramic fuse.

  • Voltage Rating: 500V AC, 400V DC
  • Current Rating: 3.15A
  • Breaking Capacity: 100A AC, 1.5kA DC
  • DC Cold Resistance: 0.0277 Ohms
  • Response Time: Slow
  • Melting I2t: 50.109
  • Approvals: cULus, PSE, SEMKO, VDE
  • Packaging: Bulk
  • Mounting Style: Through hole
  • Dimension: 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
  • Manufacturer Package: 5mm x 20mm (Axial)
  • Popularity: Popular
  • Supply and Demand: Balanced
