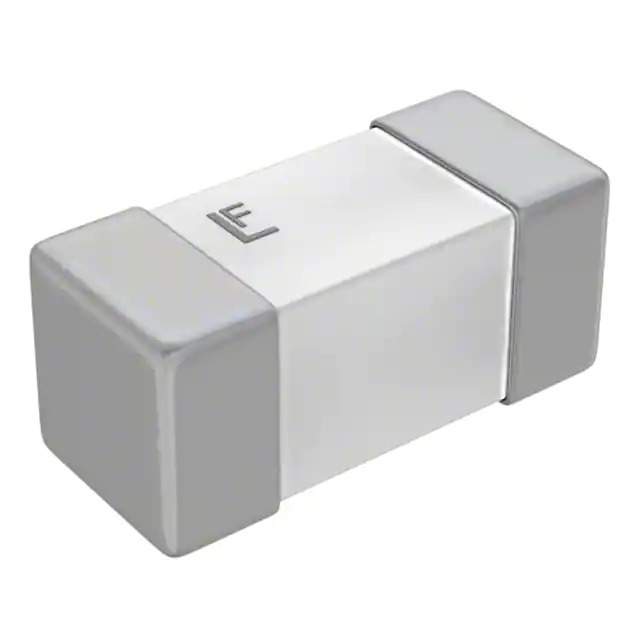

Same model may have multiple batches, images only for reference.
0476015.MR Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0476015.MR

Part No 0476015.MR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 15A 125VAC/VDC 2SMD / 15 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series NANO²®476
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 15 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 300A DC
Melting I²t 61.286
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)
DC Cold Resistance 0.0045 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361368-0476015.MR
Ultra Librarian 3D Model Ultra Librarian 0476015.MR CAD Model

Description

The 1361368-0476015.MR is a surface mount fuse from Littelfuse Inc.'s NANO²® 476 series.

  • Current Rating: 15 A
  • Voltage Rating: 125 V AC and DC
  • Fuse Type: Fast Blow
  • Breaking Capacity: 100A AC and 300A DC @ its rated voltage
  • Size: 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)
  • Package: Tape and Reel
  • REACH: Unaffected
  • ECCN: EAR99
  • Agency Approval: cURus
  • Manufacturer: Littelfuse Inc.
