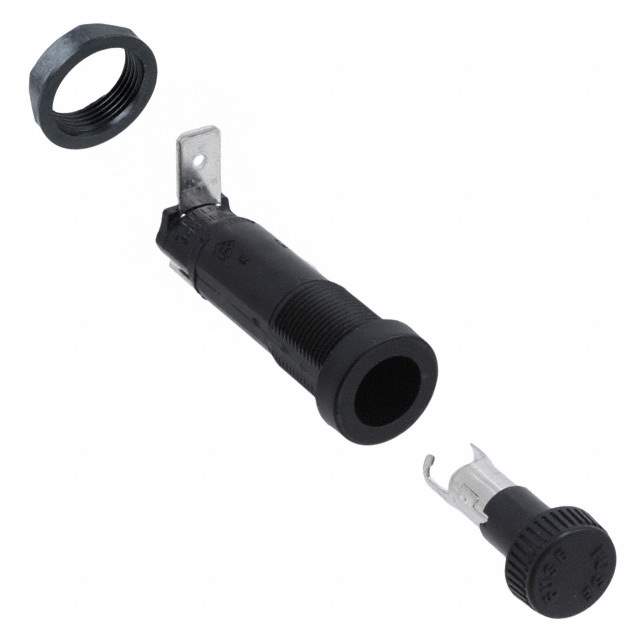

03453LF7H Real Image
Same model may have multiple batches, images only for reference.

03453LF7H

Part No 03453LF7H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT / International Shock-Safe Panel Mount Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Holder
Fuse Type Cartridge
For Use With/Related Products 3AG
Fuse Size 1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 20A
Mounting Style Panel Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Copper Alloy
Contact Finish Tin
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810451-03453LF7H
Ultra Librarian 3D Model Ultra Librarian 03453LF7H CAD Model

Description

The Littelfuse Inc. 810451-03453LF7H is a cartridge fuse holder suitable for 3AG fuses.

  • Mounting Type: Panel Mount
  • Termination Style: Quick Connect 0.250 inches (6.3mm)
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Fuse Size: 1/4 inch Dia x 1 1/4 inch L (6.4mm x 31.8mm)
  • Current Rating: 20A
  • Manufacturer Pack Quantity: 100
