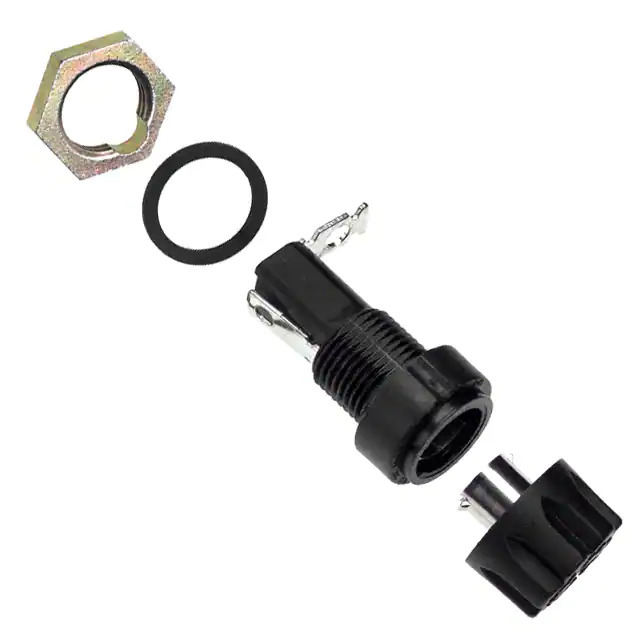

03420004H Littelfuse Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 342
Package Bulk
Product Status Active
Mounting Type Panel Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Orientation -
Termination Style Solder Lug
Contact Material Brass
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361515-03420004H
Ultra Librarian 3D Model Ultra Librarian 03420004H CAD Model

Description

The 342 fuseholder is a panel mount type holder designed for use with 3AG, 1/4" x 1-1/4" (SFE-20) fuses.

  • Current Rating: 20A
  • Voltage Rating: 250V
  • Contact Material: Tin-finished brass
  • Termination Style: Solder Lug
  • Application: Single circuit protection
  • Size: 0.25" Dia x 1.26" L
  • RoHS Compliance: Compliant
  • REACH Compliance: Unaffected
