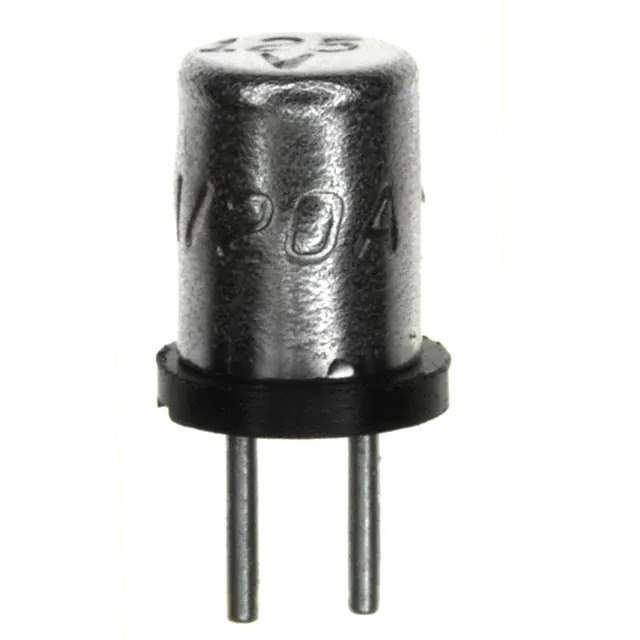

0272.100H Real Image
Same model may have multiple batches, images only for reference.

0272.100H

Part No 0272.100H
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 100MA 125VAC/VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series MICRO™ 272
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 100 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case Radial, Can, Vertical
Breaking Capacity @ Rated Voltage 10kA
Melting I2t 0.000385
Approval Agency CSA, QPL, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.235" Dia x 0.287" H (5.97mm x 7.30mm)
DC Cold Resistance 1.25 Ohms
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 853157-0272.100H
Ultra Librarian 3D Model Ultra Librarian 0272.100H CAD Model

Description

The MICRO™ 272 circuit protection fuse is a board mount component designed for reliable and efficient protection against overcurrents.

  • Voltage Rating: 125V AC and 125V DC
  • Response Time: Fast Blow
  • Breaking Capacity: 10kA @ the rated voltage
  • Size: 0.235" diameter and 0.287" height
  • DC Cold Resistance: 1.25 Ohms
  • Current Rating: 100mA
  • Mounting: Through Hole
  • Package: Radial, Can, Vertical
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer: Littelfuse Inc.
  • Approvals: CSA, QPL, and UL
  • California Prop 65: Compliant - Contains Warning Information
