Same model may have multiple batches, images only for reference.

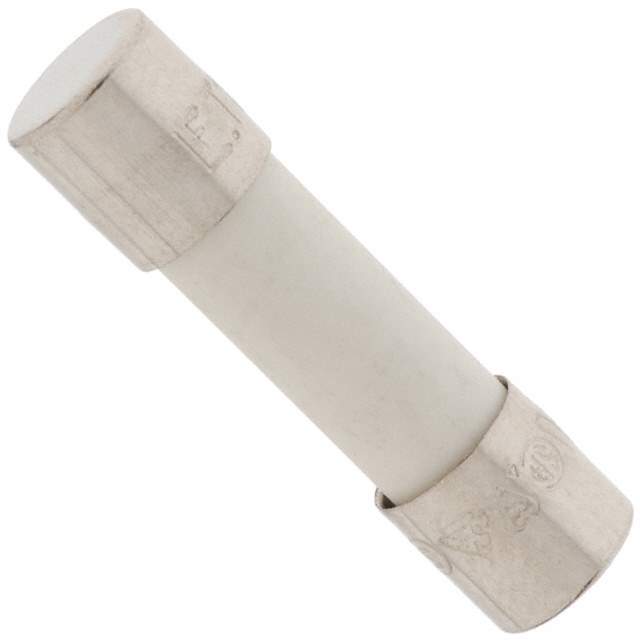

0216.630HXP Real Image
Same model may have multiple batches, images only for reference.

0216.630HXP

Part No 0216.630HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 630MA 250VAC 5X20MM / 216 Series, 5 x 20 mm, Fast-Acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 630mA
Voltage Rating - AC 250V
Response Time Fast Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 0.175
Approvals CCC, CE, CSA, SEMKO, UR, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.465 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812536-0216.630HXP
Ultra Librarian 3D Model Ultra Librarian 0216.630HXP CAD Model

Description

The Littelfuse Inc. 0216.630HXP is a ceramic cartridge fuse with a voltage rating of 250V and a current rating of 630mA.

  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • Mounting: Holder
  • Package: 5mm x 20mm
  • DC Cold Resistance: 0.465 Ohms
  • Operating Temperature: -55°C to 125°C
  • Approvals: CCC, CE, CSA, SEMKO, UR, VDE
  • Melting I2t: 0.175
