Same model may have multiple batches, images only for reference.

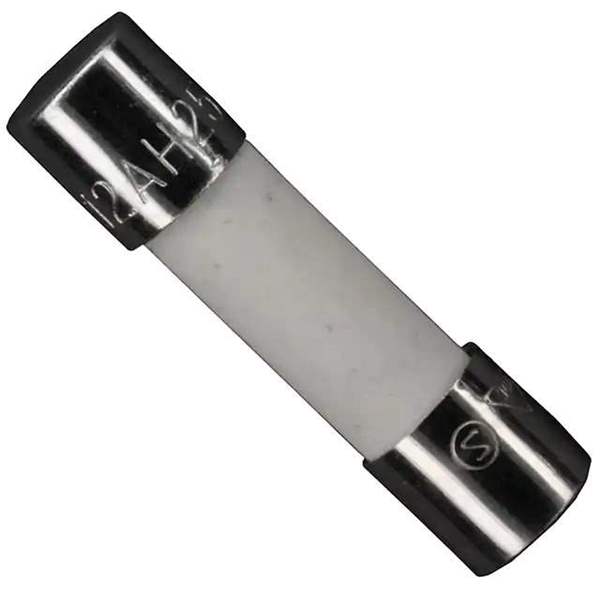

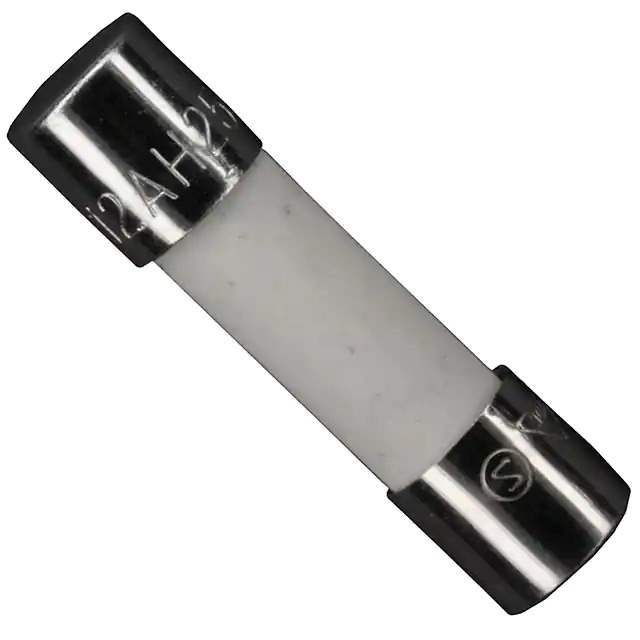

0215020.MXP Real Image
Same model may have multiple batches, images only for reference.

0215020.MXP

Part No 0215020.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 20A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 215
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 400A
Melting I2t 2600
Approval Agency PSE, SEMKO, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0023 Ohms
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 844983-0215020.MXP
Ultra Librarian 3D Model Ultra Librarian 0215020.MXP CAD Model

Description

The 844983-0215020.MXP is a cartridge ceramic fuse from Littelfuse Inc.

  • Series: 215
  • Voltage Rating: 250 V AC
  • Response Time: Slow Blow
  • Breaking Capacity: 400A @ Rated Voltage
  • Size: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • DC Cold Resistance: 0.0023 Ohms
  • Mounting Type: Holder Required
  • Package: 5mm x 20mm
  • Operating Temperature: -55°C to 125°C
  • Approvals: PSE, SEMKO, and UL
