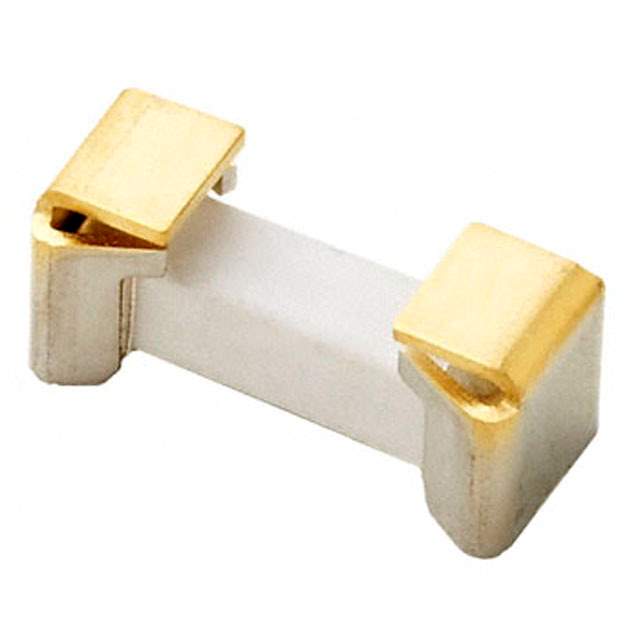

0160.500MR Real Image
Same model may have multiple batches, images only for reference.

0160.500MR

Part No 0160.500MR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 500MA 250VAC 2SMD / 500 mA 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Holder, Surface Mount 2-SMD, Square End Block with Clip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series NANO²® 160
Package Tape & Reel
Mounting Type Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage 50A
Melting I2t 1.96
Approval Agency cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm)
DC Cold Resistance 0.5974 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names F3558CT,F3558TR,F3558DKR,0160500MR,-0160.500MR
Standard Package 1,000
Win Source Part Number 1169746-0160.500MR
Ultra Librarian 3D Model Ultra Librarian 0160.500MR CAD Model

Description

The NANO²® 160 series from Littelfuse Inc. offers a reliable circuit protection solution for a wide range of applications.

  • Response Time: slow blow
  • Breaking Capacity: 50A @ rated voltage
  • DC Cold Resistance: 0.5974 Ohms
  • Melting I2t: 1.96
  • Package Quantity: 1,000 units
  • Mounting Type: holder, surface mount
  • Package/Case: 2-SMD, square end block with clip
  • Operating Temperature Range: -55°C to 125°C
  • Suitable for: circuit protection for electronic components and devices
