Same model may have multiple batches, images only for reference.

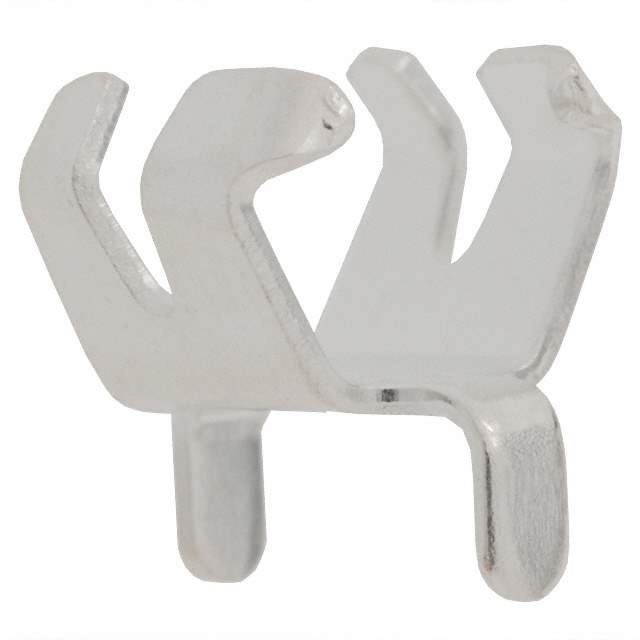

01220090Z Real Image
Same model may have multiple batches, images only for reference.

01220090Z

Part No 01220090Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CART 250V 30A PCB 1=1 / Fuse Clip 30 A 250V 1 Circuit Cartridge Through Hole
Datasheet
01220090Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 122
Package Bulk
Mounting Type Through Hole
Fuse Size 0.25" Dia (6.35mm)
Current Rating (Amps) 30 A
For Use With/Related Products 1/4" Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 250V
Orientation Horizontal
Termination Style PC Pin
Contact Material Beryllium Copper
Contact Finish Silver
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Names 01220090Z-ND,F4190,-1024-01220090Z,1220090Z
Standard Package 2,000
Win Source Part Number 1120269-01220090Z
Ultra Librarian 3D Model Ultra Librarian 01220090Z CAD Model

Description

The 01220090Z by Littelfuse Inc. is a fuseholder for 1/4" diameter fuses.

  • Current Rating: 30A
  • Voltage Rating: 250V
  • Fuseholder Type: clip-type
  • Mounting Style: through-hole
  • Material: beryllium copper
  • Contact Finish: silver
