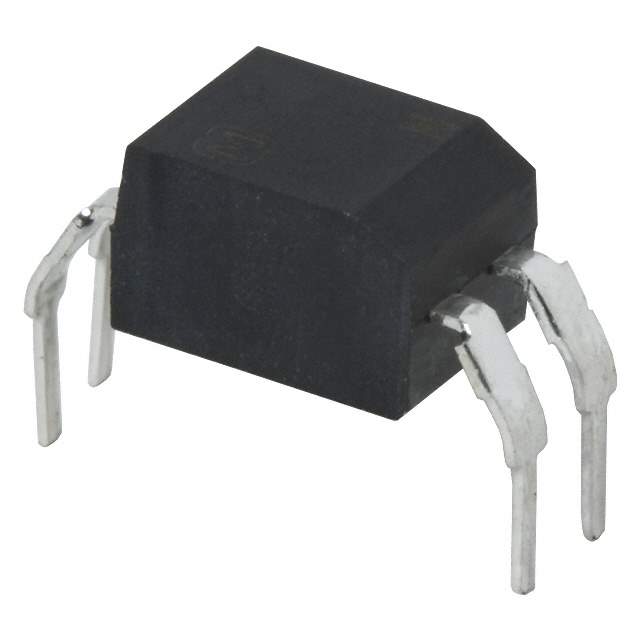

The LTV-816M is an optoisolator - transistor, photovoltaic output from Lite-On Inc.

• Package: Tube
• Standard Package: 100
• Output Type: Transistor
• Input Type: DC
• Maximum Forward Current (If): 50mA
• Forward Voltage (Vf): 1.2V (typical)
• Rise/Fall Time (typ): 4µs and 3µs respectively
• Current Output/Channel: 50mA
• Number of Channels: 1
• Voltage Isolation: 5000Vrms
• Current Transfer Ratio (Min): 50% @ 5mA
• Voltage Output (Max): 80V
• Vce Saturation (Max): 200mV
• Current Transfer Ratio (Max): 600% @ 5mA
• Mounting Type: Through hole
• Package/Case: 4-DIP (0.400", 10.16mm)
• Supplier Device Package: 4-DIP
• Operating Temperature Range: -30°C ~ 110°C
• Alternative Parts (cross-reference): LTV-817-C, LTV-817-B, VO615A-6, VO615A-8, and TLP781(D4-GR,F)LTV816M
