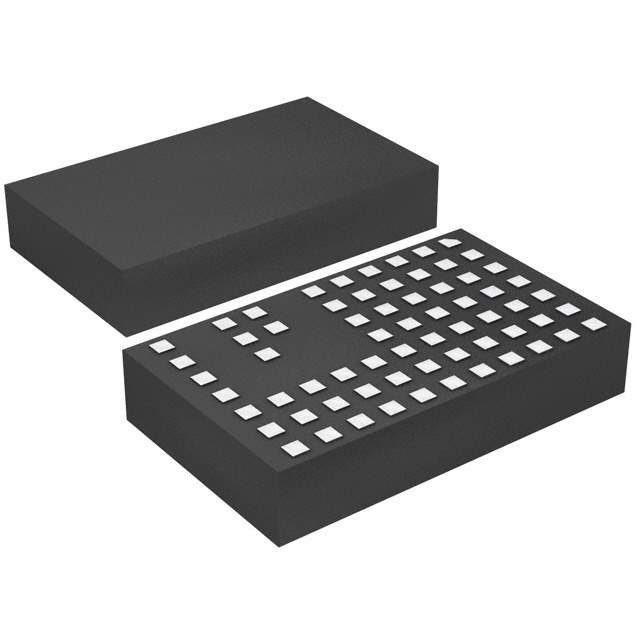

The LTM4604IV from Linear Technology is a complete system-in-a-package (µModule) that includes a DC/DC controller, power switches, inductor, and all support components in a compact LGA package. It is designed to be a high-efficiency, low-voltage step-down regulator that can deliver up to 4A of continuous output current. The LTM4604IV operates over an input voltage range of 4V to 20V, making it suitable for a wide variety of applications, including telecommunications, networking equipment, and industrial systems.

One of the key features of the LTM4604IV is its high efficiency, which can reach up to 92%. This is achieved through the use of a synchronous rectification technique and its ability to operate at a high switching frequency with a very low dropout voltage. The device also has a low-profile surface mount LGA package, measuring just 15mm x 15mm x 2.8mm, which allows for a compact and space-saving design on the PCB.

The LTM4604IV is designed with versatility in mind, providing several user-configurable options such as programmable soft-start, tracking, and margining. The output voltage is adjustable from 0.6V to 5V, which ensures compatibility with a wide range of low voltage power rails. Additionally, the module includes overvoltage and overcurrent protection, enhancing the safety and reliability of the system it is incorporated into.

For thermal management, the LTM4604IV features an internal temperature diode that allows for temperature monitoring, ensuring performance and reliability even under varying environmental conditions. The device is also RoHS compliant, meeting the requirements for environmental standards in electronics.

The LTM4604IV from Linear Technology represents a seamless integration of power components, offering designers a simplified solution for complex power supply requirements. Its high efficiency, compact design, and comprehensive feature set make it an excellent choice for modern electronic applications requiring a high-performance power management solution.
