The LTM4604AIV#PBF is a high-performance DC/DC µModule (micromodule) regulator from Linear Technology, which is now part of Analog Devices. This innovative power solution is designed for a variety of applications that require efficient, reliable voltage conversion and power management.

Key Features

• Wide Input Voltage Range: The LTM4604AIV#PBF operates over a wide input voltage range of 4V to 20V, making it suitable for diverse applications including industrial, automotive, and telecommunications systems.
• Adjustable Output Voltage: Its output voltage is adjustable from 0.8V to 5V, providing the flexibility to power a broad range of devices and integrated circuits.
• High Efficiency: With its advanced design, this µModule regulator achieves high efficiency, which helps in reducing power loss and heat dissipation in the system.

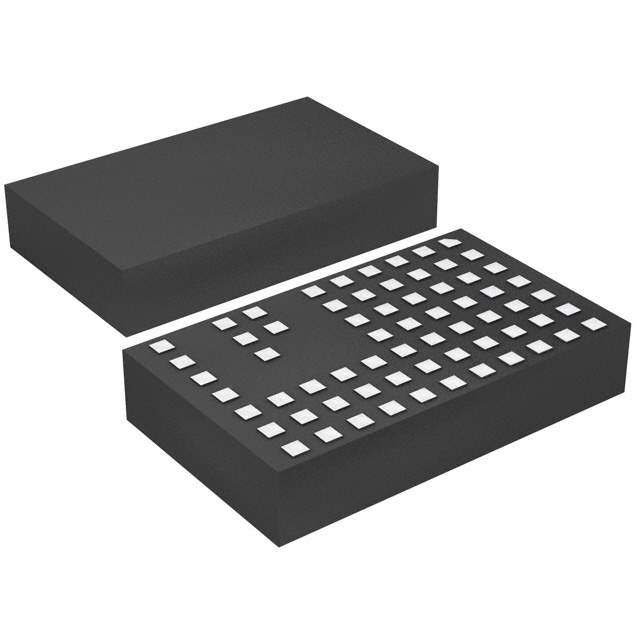

• Compact Package: The product comes in a compact (15mm x 15mm x 2.8mm) LGA package, which is ideal for space-constrained applications.
• Integrated Components: It integrates the inductor, power switches, DC/DC controller, and compensation circuitry within a single package, minimizing the need for external components and simplifying the design process.

Performance and Protection

The LTM4604AIV#PBF is equipped with a range of features to ensure stable and safe operation. These include overvoltage, overcurrent, and overtemperature protection. Additionally, it features soft-start capability to prevent inrush current at startup and provides precise regulation with a temperature drift of typically ±2.5% over the full temperature range.

Applications

This versatile µModule regulator is suitable for a wide array of applications such as:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Automotive Electronics
• Medical Devices

With its robust design and integrated approach, the LTM4604AIV#PBF from Linear Technology offers a compact, efficient, and reliable solution for your power management needs.
