Linear Technology's LTM4600IV#PBF - High Efficiency, DC/DC µModule Regulator

The LTM4600IV#PBF is a complete system-in-a-package (µModule) from Linear Technology, featuring a high-efficiency, synchronous step-down DC/DC regulator with integrated inductors, power switches, DC/DC controller and compensation components, all encapsulated within a compact LGA package. Designed for versatility, this µModule is ideal for a wide range of applications, including telecommunications, networking, industrial, and aerospace systems, where performance, space, and reliability are critical.

With an operating input voltage range of 4.5V to 20V, the LTM4600IV#PBF can deliver a continuous output current of up to 10A, making it suitable for powering low voltage, high current applications such as FPGAs, ASICs, and microprocessors. The output voltage is programmable from 0.6V to 5V, allowing for great flexibility in various circuit designs.

The efficiency of the LTM4600IV#PBF is enhanced by its ability to operate in burst mode, which reduces quiescent current and improves light load efficiency, making it an excellent choice for battery-powered devices. Moreover, its high switching frequency and current mode control allow for a fast transient response and easy loop stabilization.

The robust design of the LTM4600IV#PBF ensures reliable operation even in tough environments. It features overvoltage, overcurrent, and overtemperature protection, safeguarding your system against potential damage. Additionally, the module's military-grade temperature range of -40°C to +125°C guarantees performance in extreme conditions.

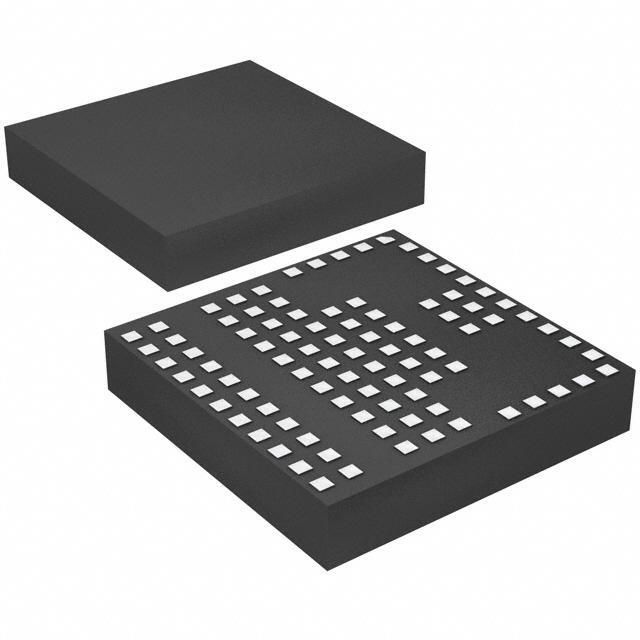

The LTM4600IV#PBF comes in a thermally enhanced, land grid array (LGA) package, which is RoHS compliant and compatible with reflow soldering processes. This eases the integration into various PCB designs and contributes to a reduced design footprint, saving valuable board space.

In summary, the LTM4600IV#PBF from Linear Technology is a cutting-edge, high-efficiency, and highly integrated DC/DC µModule regulator that offers a compact, reliable, and easy-to-use solution for a wide array of power management applications.
