Overview of LT3746EUHH#PBF

The LT3746EUHH#PBF is a highly efficient, multi-channel LED driver integrated circuit (IC) designed and manufactured by Linear Technology. It is a versatile solution for controlling and driving LEDs in a wide range of applications, including automotive lighting, display backlighting, and general illumination purposes.

Key Features

• Multi-Channel Output: The LT3746EUHH#PBF can drive up to 32 individual LED channels, making it an excellent choice for complex lighting systems that require multiple LEDs to be controlled independently.
• High Efficiency: With an integrated 55V buck controller, the device operates with high efficiency, which helps to reduce power consumption and heat generation in LED applications.
• Wide Input Voltage Range: The IC supports a broad input voltage range from 6V to 55V, accommodating various power supply configurations and ensuring compatibility with different system designs.
• Integrated Dot Correction and Grayscale PWM Dimming: The LT3746EUHH#PBF offers 12-bit (4096 levels) of grayscale PWM dimming for each channel, along with 6-bit (64 levels) of dot correction, providing precise control over the brightness and color consistency of LEDs.
• Robust Protection Features: It includes thermal shutdown, open LED protection, and short-circuit protection, ensuring reliable operation and longevity of the LED system.

Package and Applications

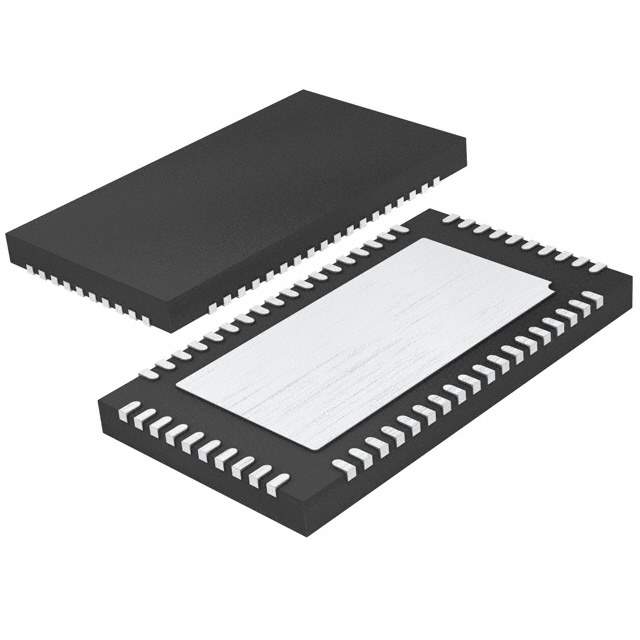

The LT3746EUHH#PBF comes in a 47-lead QFN package that is designed for space-constrained applications. Its compact form factor and powerful features make it suitable for a variety of uses, from sophisticated automotive headlamps to high-definition video displays that require individual LED control for optimal performance.

Design Flexibility

Designers can take advantage of the LT3746EUHH#PBF's flexibility to create highly customized LED configurations. The device's serial interface allows for easy expansion and scalability in larger LED arrays without a significant increase in pin count or complexity. This makes it an ideal choice for projects that may evolve over time or require future enhancements.

Conclusion

In summary, the LT3746EUHH#PBF from Linear Technology is a powerful, efficient, and flexible LED driver that can meet the demands of a wide range of LED lighting applications. Its robust feature set and protection mechanisms ensure that it can deliver consistent performance while safeguarding the LEDs it controls.
