Product Overview: LT1206CR#PBF

The LT1206CR#PBF is a high-speed, current-feedback amplifier with an impressive slew rate and bandwidth, manufactured by Linear Technology. This operational amplifier is designed to cater to a wide range of applications, including video and graphics systems, test equipment, and communication devices. Its robust design and performance parameters make it an ideal choice for professionals looking for reliable and efficient signal amplification solutions.

Key Features

• High Slew Rate: The LT1206CR#PBF boasts a high slew rate of 600V/µs, which enables it to handle rapid changes in input signals without distortion, making it perfect for high-speed signal processing.
• Wide Bandwidth: With a 60MHz gain bandwidth product, this amplifier can work with a wide range of frequencies, ensuring that it can support various applications that require high-frequency operation.
• Large Output Current: Capable of delivering an output current of up to 60mA, the LT1206CR#PBF can drive heavy loads, making it versatile for use in different circuit configurations.
• Low Distortion: The device is engineered to provide low distortion across its operating range, which is critical for maintaining signal integrity in high-fidelity audio and video applications.
• Single Supply Operation: It can be powered by a single supply voltage, simplifying power supply design and making it suitable for portable and compact electronic designs.

Applications

• Video and Graphics Systems
• Test Equipment
• Telecommunications
• Active Filters
• Cable Drivers

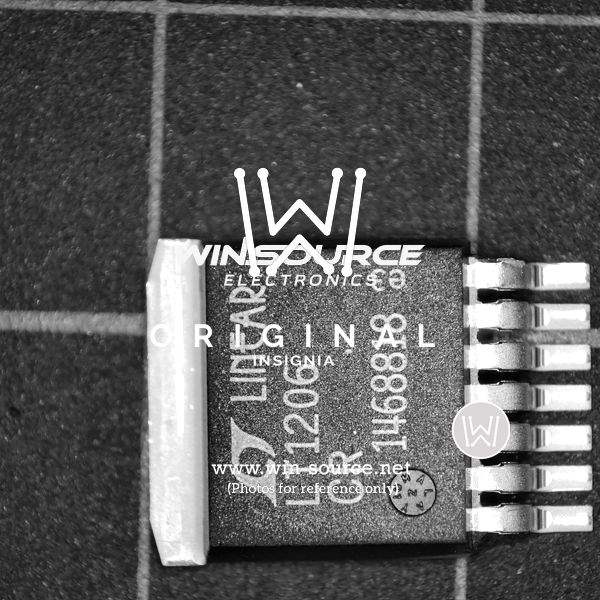

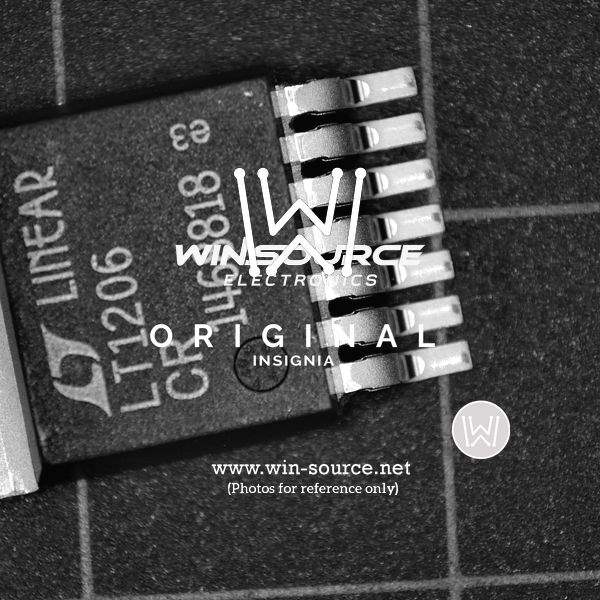

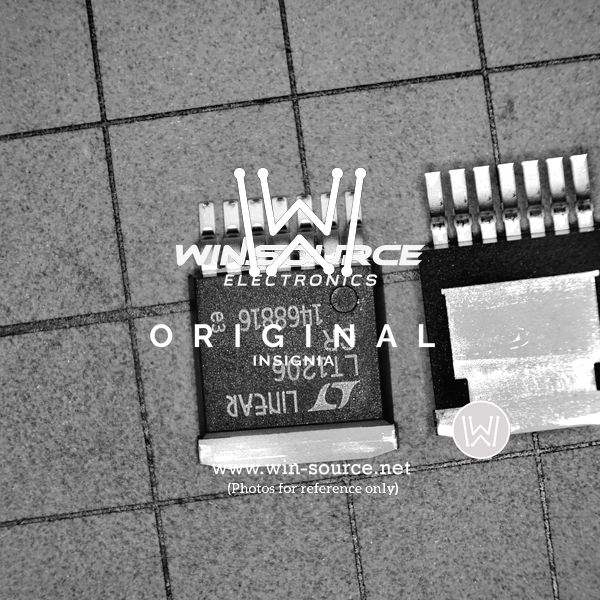

The LT1206CR#PBF is packaged in a compact, thermally enhanced 16-lead TO-220 package, ensuring efficient heat dissipation for reliable performance even under high load conditions. Its combination of speed, power, and precision positions the LT1206CR#PBF as a top-tier component for designers and engineers who demand the best in operational amplifier technology.

Whether you are developing advanced video processing equipment or high-speed communication systems, the LT1206CR#PBF from Linear Technology provides the performance and reliability needed to deliver superior results.
