Same model may have multiple batches, images only for reference.

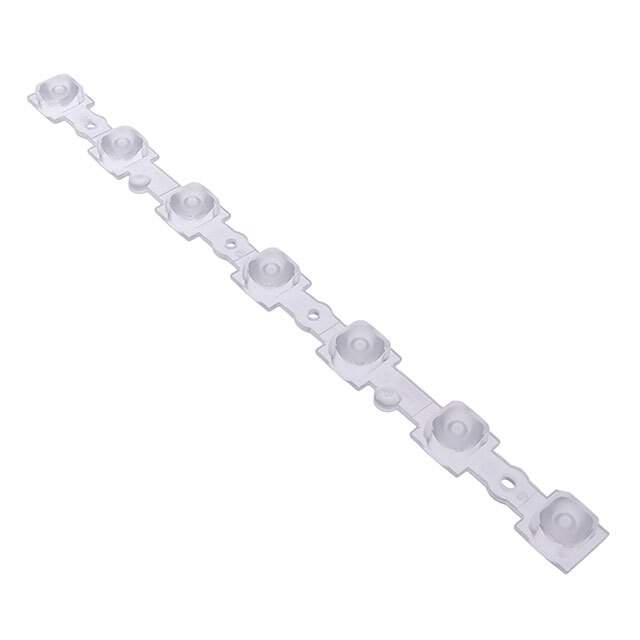

C18143_DAISY-7X1-M-D Real Image
Same model may have multiple batches, images only for reference.

C18143_DAISY-7X1-M-D

Part No C18143_DAISY-7X1-M-D
Manufacturer Ledil
Catalog Optics - Lenses
Description LINEAR LENSRECTANG7 POS19.0 X 25  /  Lens with Holder 35° Wide Adhesive Tape, Snap In
Datasheet
C18143_DAISY-7X1-M-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Optics - Lenses
Mfr Ledil
Series DAISY
Package Tray
Type Lens with Holder
Number of LEDs 7
Lens Style Rectangle with Flat Top
Lens Size 279.5mm x 39.6mm
Optical Pattern Wide
Viewing Angle 35°
For Use With/Related Manufacturer Cree, Samsung
Material Acrylic
Mounting Type Adhesive Tape, Snap In
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9001.90.4000
Other Names 711-C18143_DAISY-7X1-M-D
Standard Package 24
Win Source Part Number 1191953-C18143_DAISY-7X1-M-D
Ultra Librarian 3D Model Ultra Librarian C18143_DAISY-7X1-M-D CAD Model

Description

The Ledil C18143_DAISY-7X1-M-D is an electronic component manufactured by Ledil. This component is a lens with a holder and is a part of the DAISY series.

  • Viewing Angle: 35 degrees
  • LED Accommodation: 7 LEDs
  • Lens Shape: Rectangular with a flat top
  • Optical Pattern: Wide
  • Lens Size: 279.5mm x 39.6mm
  • Mounting: Adhesive tape or snap-in
  • Suitable LEDs: Cree and Samsung
