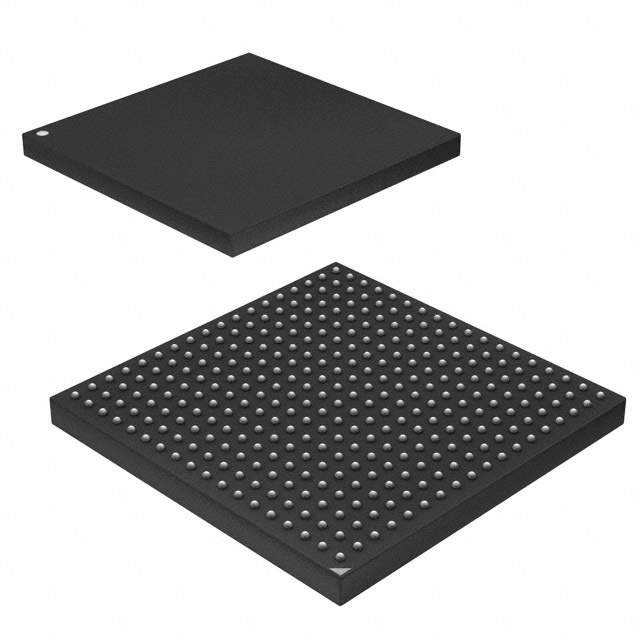

LCMXO3LF-2100C-5BG324I Real Image
Same model may have multiple batches, images only for reference.

LCMXO3LF-2100C-5BG324I

Part No LCMXO3LF-2100C-5BG324I
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 279 I/O 324CABGA / MachXO3 Field Programmable Gate Array (FPGA) IC 279 75776 2112 324-LFBGA
Datasheet
LCMXO3LF-2100C-5BG324I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Lattice Semiconductor Corporation
Series MachXO3
Package Tray
Number of LABs/CLBs 264
Number of Logic Elements/Cells 2112
Total RAM Bits 75776
Number of I/O 279
Voltage - Supply 2.375V ~ 3.465V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 324-LFBGA
Supplier Device Package 324-CABGA (15x15)
Base Product Number LCMXO3
Standard Package 126
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1351571-LCMXO3LF-2100C-5BG324I
Ultra Librarian 3D Model Ultra Librarian LCMXO3LF-2100C-5BG324I CAD Model

Description

The LCMXO3LF-2100C-5BG324I is an embedded FPGA chip from Lattice Semiconductor Corporation.

  • Series: MachXO3
  • Package: 324-LFBGA
  • Number of I/Os: 279
  • Number of LABs/CLBs: 264
  • Number of Logic Elements/Cells: 2112
  • Total RAM Bits: 75776
  • Voltage Supply: 2.375V to 3.465V
  • Mounting Type: Surface Mountable
  • Supplier Device Package: 324-CABGA (15x15)
  • Operating Temperature: -40°C to 100°C (TJ)
  • ECCN: 3A991D
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
