Same model may have multiple batches, images only for reference.

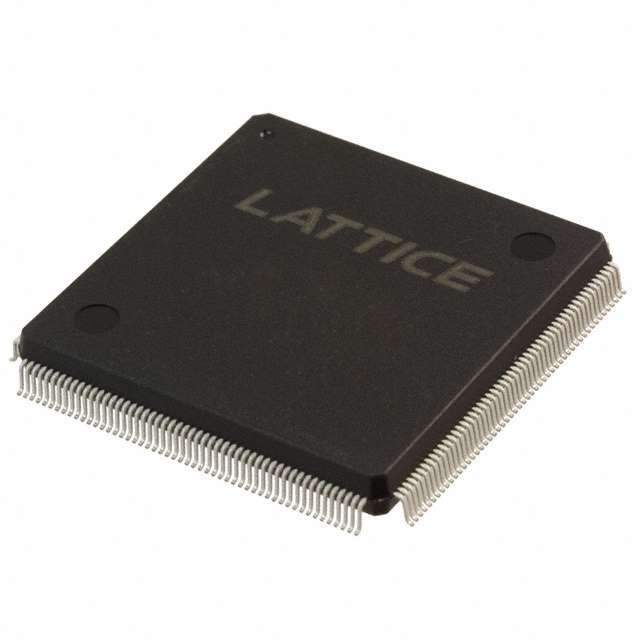

LC5512MV-75QN208I Real Image
Same model may have multiple batches, images only for reference.

LC5512MV-75QN208I

Part No LC5512MV-75QN208I
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 512MC 7.5NS 208QFP / CPLD ispXPLD 5000MV Family 150K Gates 512 Macro Cells 150MHz 3.3V 208-Pin PQFP
Datasheet
LC5512MV-75QN208I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Lattice Semiconductor Corporation
Series ispXPLD 5000MV
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 3 V ~ 3.6 V
Number of Logic Elements/Blocks 16
Number of Macrocells 512
Number of I/O 149
Operating Temperature Range -40°C ~ 105°C (TJ)
Mounting SMD
Package 208-BFQFP
Manufacturer Package 208-PQFP (28x28)
Win Source Part Number 778338-LC5512MV-75QN208I
Popularity Medium
Supply and Demand Status Limited
Family Name ispXPLD 5512MV
Introduction Date November 21, 2000
ECCN EAR99
Country of Origin Malaysia, Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LC5512MV-75QN208I CAD Model

Description

The LC5512MV-75QN208I is an obsolete IC manufactured by Lattice Semiconductor Corporation.

  • Series: ispXPLD 5000MV
  • Package: 208-BFQFP
  • Mounting: SMD
  • Operating Temperature Range: -40°C to 105°C
  • I/O: 149
  • Programmable: In-system
  • Delay Time tpd(1) max: 7.5ns
  • Internal Voltage Supply: 3 V to 3.6 V
  • Logic Elements/Blocks: 16
  • Macrocells: 512
  • Estimated EOL Date: Obsolete
  • Halogen-Free: Compliant
  • Popularity: Medium
