Same model may have multiple batches, images only for reference.

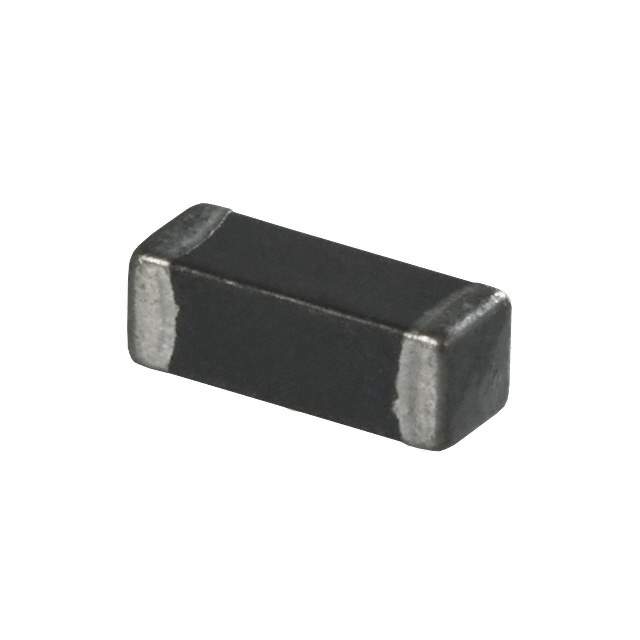

LI1806E101R-00 Real Image
Same model may have multiple batches, images only for reference.

LI1806E101R-00

Part No LI1806E101R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 1806 1LN
Datasheet
LI1806E101R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 100 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 300 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.073" (1.85mm)
Dimension 0.177" L x 0.063" W (4.50mm x 1.60mm)
Win Source Part Number 112274-LI1806E101R-00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LI1806E101R-00 CAD Model

Description

The Laird-Signal Integrity Products 112274-LI1806E101R-00 is a power and signal line filter designed for use in electronic devices.

  • Maximum Current: 500mA
  • DC Resistance: 300 mOhm
  • Height: 0.073 inches
  • Mounting: Surface mount technology (SMT)
  • Lines: 1
  • Impedance: 100 Ohm @ 100MHz
  • Packaging: Reel
  • Popularity: Popular in the market
  • Operating Temperature: -40°C to 125°C
  • Supply and Demand: Balanced
  • Suitability: Suitable for use in a wide range of electronic devices.
