Same model may have multiple batches, images only for reference.

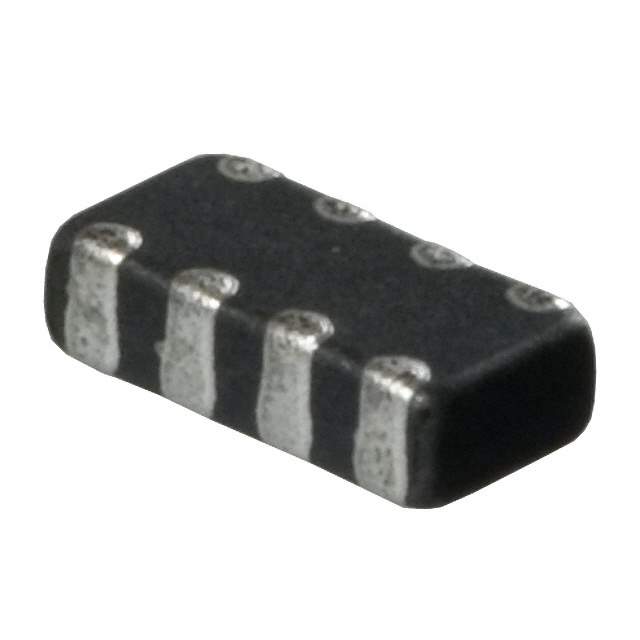

DA1206D301R-10 Real Image
Same model may have multiple batches, images only for reference.

DA1206D301R-10

Part No DA1206D301R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 300 OHM 1206 4LN / Ferrite Beads Chip Array 300Ohm 25% 100MHz 0.4A 0.4Ohm DCR 1206 T/R
Datasheet
DA1206D301R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Series DA
Packaging Reel package
Number of Lines 4
Impedance @ Frequency 300 Ohm @ 100MHz
Current Rating (Maximum) 400mA
DC Resistance (DCR) (Maximum) 400 mOhm
Operating Temperature Range -40°C ~ 125°C
Package 1206 (3216 Metric), Array, 8 PC Pad
Mounting SMD
Height (Maximum) 0.039" (1.00mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 772395-DA1206D301R-10
Popularity Medium
Supply and Demand Status Limited
Family Name DA
Introduction Date April 10, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian DA1206D301R-10 CAD Model

Description

The Laird-Signal Integrity Products DA1206D301R-10 is an array filter designed for use in various electronic applications.

  • Configuration: 4-Line
  • Impedance: 300 Ohm @ 100MHz
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mount
  • Package: 1206 (3216 Metric)
  • PC Pad: 8
