Same model may have multiple batches, images only for reference.

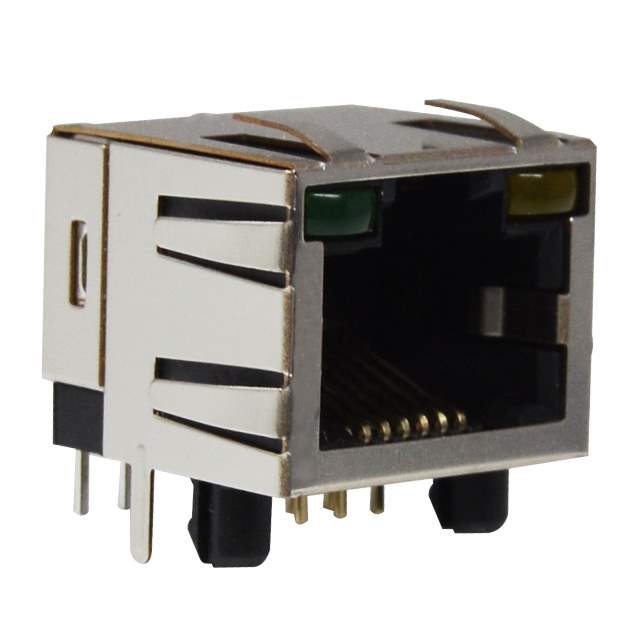

GWLX-S9-88-G/Y-50 Real Image
Same model may have multiple batches, images only for reference.

GWLX-S9-88-G/Y-50

Part No GWLX-S9-88-G/Y-50
Manufacturer Kycon, Inc.
Catalog Modular Connectors
Description MODJACK LOW/PROF RT< 8P8C SHIELD / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
Datasheet
GWLX-S9-88-G/Y-50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr Kycon, Inc.
Series GWLX
Package Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Features Board Lock
LED Color Green - Yellow
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number GWLX
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2092-GWLX-S9-88-G/Y-50
Standard Package 90
Win Source Part Number 1169032-GWLX-S9-88-G/Y-50
Ultra Librarian 3D Model Ultra Librarian GWLX-S9-88-G/Y-50 CAD Model

Description

This modular connector is designed for jacks and has a 90° angle (right) orientation.

  • Angle: 90° (Right)
  • Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Shielded: EMI Finger
  • Number of Ports: 1
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • LED Color: Green - Yellow
  • Board Lock: Yes
  • Package Type: Tray
  • Tab Direction: Up
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Kycon, Inc.
