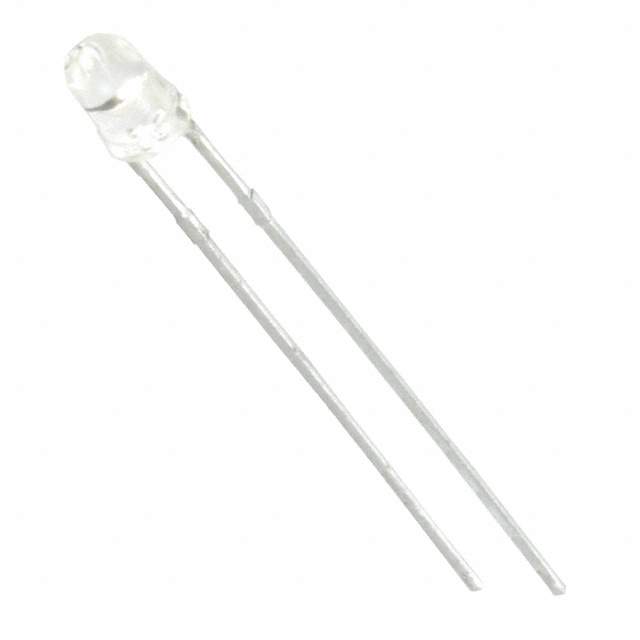

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Kingbright
Packaging Bulk
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 400mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 34°
Mounting Through Hole
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Case / Package Radial
Supplier Device Package T-1
Size / Dimension 2.90mm Dia
Height (Max) 5.90mm
Base Product Number WP710
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 754-1726,WP710A10SURC/E-NDL,Q7021258,WP710A10SURC/E-ND
Standard Package 500
Win Source Part Number 1331949-WP710A10SURC/E
Ultra Librarian 3D Model Ultra Librarian WP710A10SURC/E CAD Model

Description

The Kingbright WP710A10SURC/E is a red LED indication discrete component.

  • Viewing Angle: 34°
  • Millicandela Rating: 400mcd
  • Voltage-Forward (Vf): 1.9V
  • Current Test: 20mA
  • Temperature Range: -55°C to 100°C
  • Package: Radial
