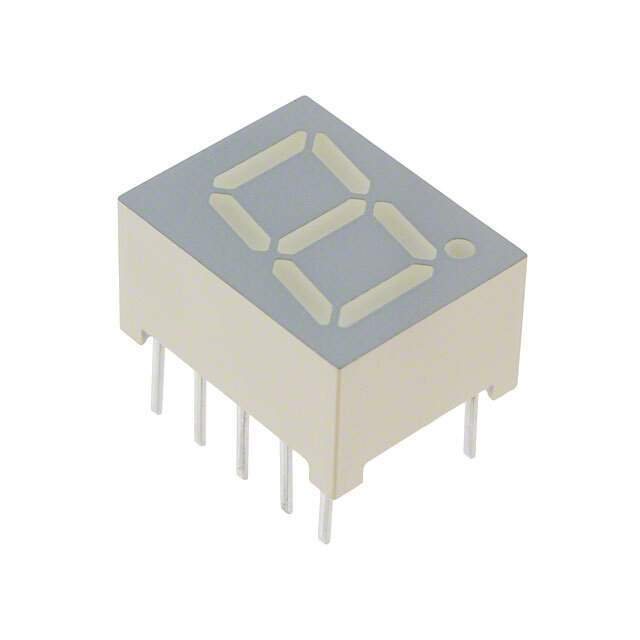

The SC39-12GWA is a 0.39 inch (9.9mm) single-digit LED display manufactured by Kingbright. This display features a green emitting color and a common cathode configuration. It is commonly used for displaying numerical information in various electronic devices and equipment.

Applications:

• Digital Clocks: Used to display the time in digital clock displays.
• Instrumentation Panels: Used in various instruments to display measured values, such as voltage, current, temperature, and pressure.
• Industrial Control Systems: Displays numerical data for process monitoring and control.
• Consumer Electronics: Found in appliances, such as microwave ovens, washing machines, and other devices to display settings and status information.
• Testing and Measurement Equipment: Displays readings from multimeters, frequency counters, and other test equipment.
• Point of Sale (POS) Terminals: Used to display transaction amounts and other information.

Features:

• 0.39 Inch Digit Height: Provides good visibility at a reasonable distance.
• Green Emitting Color: Offers good contrast and visibility.
• Common Cathode Configuration: Simplifies circuit design in some applications.
• Low Current Operation: Requires relatively low current for illumination, making it energy-efficient.
• Categorized for Luminous Intensity: Ensures consistent brightness across different displays.
• Excellent Character Appearance: Provides clear and easily readable digits.
• High Light Output: Ensures good visibility in various lighting conditions.

Benefits:

• Clear and Readable Display: The 0.39 inch digit height and green color provide a clear and easily readable display.
• Easy to Integrate: The common cathode configuration and standard pinout make it easy to integrate into existing circuits.
• Long Lifespan: LED technology provides a long lifespan, ensuring reliable operation over time.
• Low Power Consumption: Contributes to energy efficiency in the overall system.
• Cost-Effective: Provides a cost-effective solution for displaying numerical information.

Additional Details:

The SC39-12GWA has a typical forward voltage of around 2.2V and a forward current of around 20mA. The luminous intensity is specified in millicandelas (mcd), indicating the brightness of the emitted light. The device is RoHS compliant, meaning it does not contain hazardous substances. The operating temperature range is typically from -40°C to +85°C, making it suitable for a wide range of environmental conditions. The viewing angle is typically around 110 degrees. The package is a standard DIP (Dual In-line Package) with ten pins. The light is produced by using Gallium Arsenide Phosphide on Gallium Phosphide light emitting diode technology.
