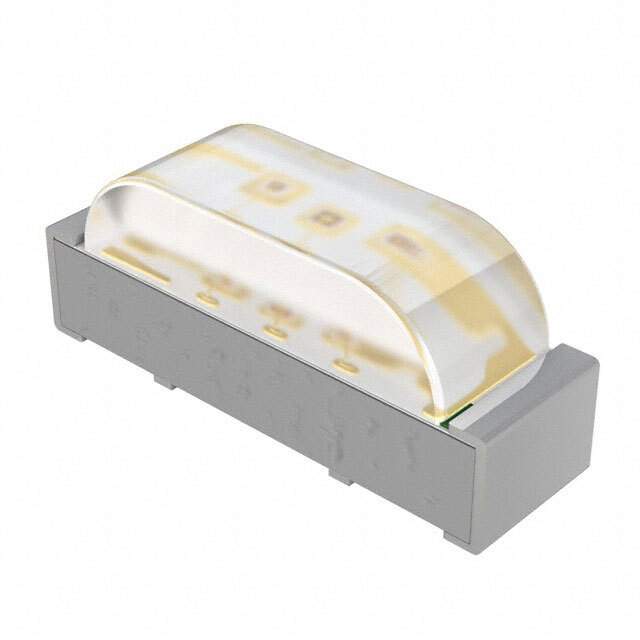

APFA2507QBDSEEZGKC Real Image
Same model may have multiple batches, images only for reference.

APFA2507QBDSEEZGKC

Part No APFA2507QBDSEEZGKC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RGB CLEAR 4SMD R/A / Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
Datasheet
APFA2507QBDSEEZGKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Kingbright
Packaging Reel - TR
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 110mcd Red, 400mcd Green, 65mcd Blue
Lens Style Rectangle with Domed Top
Lens Size 2.10mm x 0.70mm
Voltage - Forward (Vf) (Typ) 2V Red, 3.3V Green, 3.3V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 110° Red, 130° Green, 140° Blue
Mounting Surface Mount, Right Angle
Wavelength - Dominant 621nm Red, 525nm Green, 465nm Blue
Wavelength - Peak 630nm Red, 515nm Green, 460nm Blue
Case / Package 4-SMD, No Lead
Supplier Device Package 4-SMD
Size / Dimension 2.50mm L x 1.00mm W
Height (Max) 0.85mm
Base Product Number APFA2507
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 754-1978-1,754-1978-2,754-1978-6
Standard Package 3,000
Win Source Part Number 1331760-APFA2507QBDSEEZGKC
Ultra Librarian 3D Model Ultra Librarian APFA2507QBDSEEZGKC CAD Model

Description

The APFA2507QBDSEEZGKC is a high-performance RGB LED indication discrete manufactured by Kingbright.

  • Configuration: common anode
  • Viewing Angle (Red): 110°
  • Viewing Angle (Green): 130°
  • Viewing Angle (Blue): 140°
  • Millicandela Rating (Red): 110mcd
  • Millicandela Rating (Green): 400mcd
  • Millicandela Rating (Blue): 65mcd
  • Voltage-Forward (Vf) (Red): 2V
  • Voltage-Forward (Vf) (Green): 3.3V
  • Voltage-Forward (Vf) (Blue): 3.3V
  • Package: 4-SMD
  • Lens: clear colorless
  • MSL Level: 3 (168-hour)
