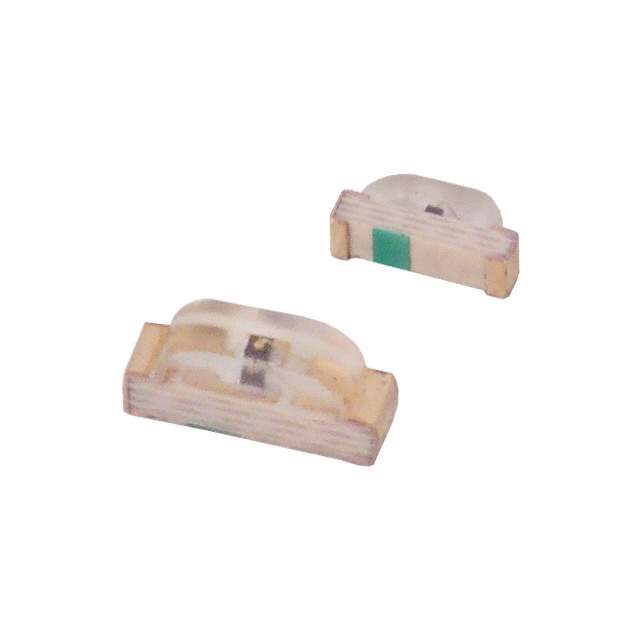

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd
Lens Style Rectangle with Domed Top
Lens Size 1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 640nm
Wavelength - Peak 660nm
Package / Case 2-SMD, No Lead
Supplier Device Package 2-SMD
Dimension 2.10mm L x 1.00mm W
Height (Max) 0.60mm
Base Product Number APA2106
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1840-6,754-1840-1,754-1840-2,APA2106SRCPRV-ND
Standard Package 2,000
Win Source Part Number 1118226-APA2106SRCPRV
Ultra Librarian 3D Model Ultra Librarian APA2106SRCPRV CAD Model

Description

The APA2106SRCPRV is a surface-mount LED indication device manufactured by Kingbright.

  • Manufacturer: Kingbright
  • Mounting Type: Surface Mount
  • Lens Style: Rectangular with Domed Top
  • Lens Size: 1.70mm x 0.60mm
  • Millicandela Rating: 30mcd
  • Voltage Rating: 1.85V
  • Current: 20mA
  • Viewing Angle: 120 degrees
  • Wavelength: 640nm
  • Standard Package: 2,000
  • Status: Obsolete
  • Application: Discrete LED Indication
