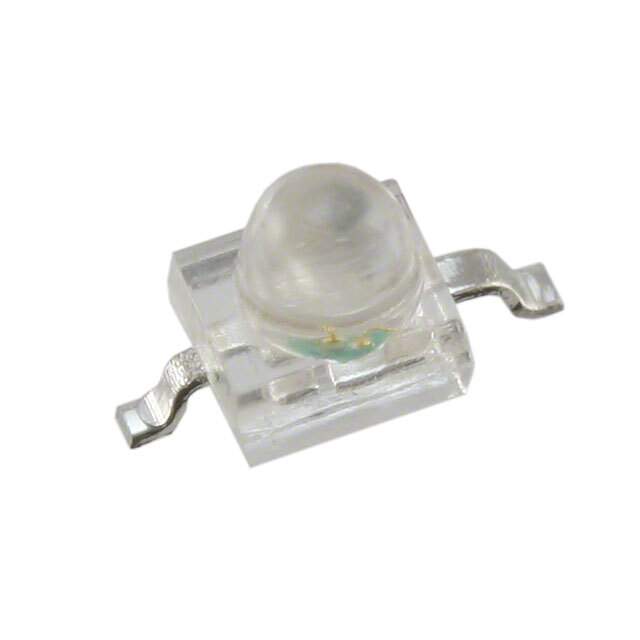

AM2520EC03 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd
Lens Style Round with Domed Top
Lens Size 1.90mm Dia
Voltage - Forward (Vf) 2V
Current - Test 20mA
Viewing Angle 20°
Mounting Style SMD
Wavelength - Dominant 617nm
Wavelength - Peak 627nm
Manufacturer Package 2-SMD, Gull Wing
Supplier Device Package SMD
Parts Dimension 2.50mm L x 2.00mm W
Height (Maximum) 2.90mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1143439-AM2520EC03
Manufacturer Homepage www.us.kingbright.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AM2520EC03 CAD Model

Description

The Kingbright AM2520EC03 is a standard configuration SMD LED with a viewing angle of 20°.

  • Millicandela Rating: 50mcd
  • Current Test: 20mA
  • Dominant Wavelength: 617nm
  • Peak Wavelength: 627nm
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Lens Style: Round with a domed top
  • Lens Size: 1.90mm dia.
  • Package: 2-SMD, gull-wing
  • Height: 2.90mm
  • GPT Description: in the open market. The supply and demand status of the LED is currently limited.
