Same model may have multiple batches, images only for reference.

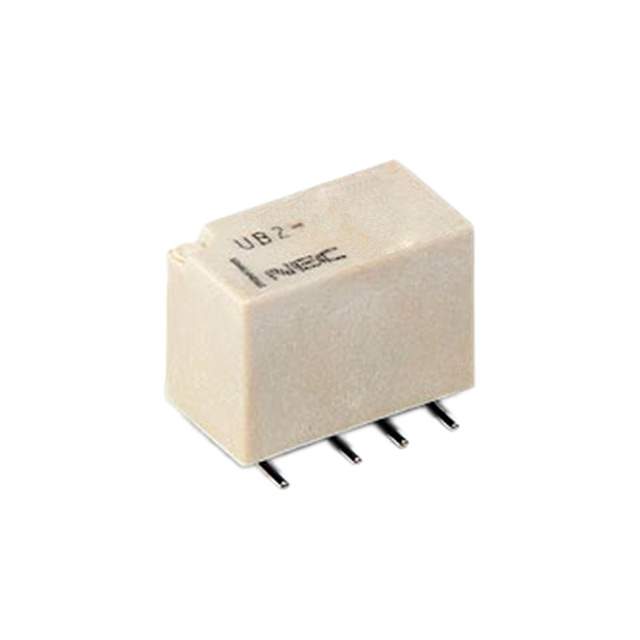

UB2-12NUN Real Image
Same model may have multiple batches, images only for reference.

UB2-12NUN

Part No UB2-12NUN
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 12V
Datasheet
UB2-12NUN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Kemet
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 11.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 2ms
Release Time 1ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 1.03 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 132394-UB2-12NUN
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UB2-12NUN CAD Model

Description

The UB2-12NUN from Kemet is a DPDT (2 Form C) relay.

  • Coil Voltage: It has a coil voltage of 12VDC and a coil resistance of 1.03 kOhms.
  • Contact Rating: The contact rating (current) is 1A and the switching voltage is 250VAC, 220VDC - Max.
  • Application: It is a general purpose relay suitable for SMD (SMT) mounting.
  • Temperature Range: The temperature range for operating is -40°C to 85°C.
  • Supply and Demand: The supply and demand status is limited.
