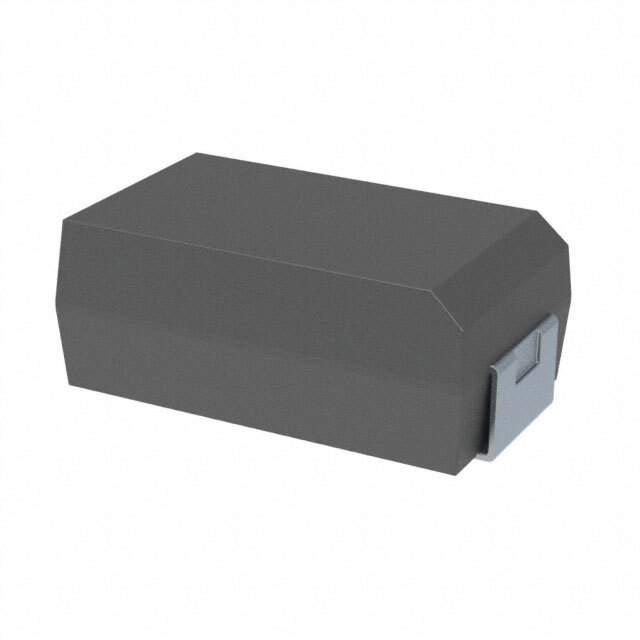

T520D337M006ATE015 Real Image
Same model may have multiple batches, images only for reference.

T520D337M006ATE015

Part No T520D337M006ATE015
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 330UF 6.3V 2917
Datasheet
T520D337M006ATE015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 330μF
Tolerance ±20%
Voltage Rating 6.3V
Type Molded
ESR 15 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 092713-T520D337M006ATE015
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T520D337M006ATE015 CAD Model

Description

The KEMET T520D337M006ATE015 is a molded SMD capacitor with a capacitance of 330μF and a voltage rating of 6.3V.

  • Capacitance: 330μF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • ESR: 15mOhm
  • Manufacturer Size Code: D
  • Height: 0.122 inches
  • Size: 0.287 inches x 0.169 inches
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
