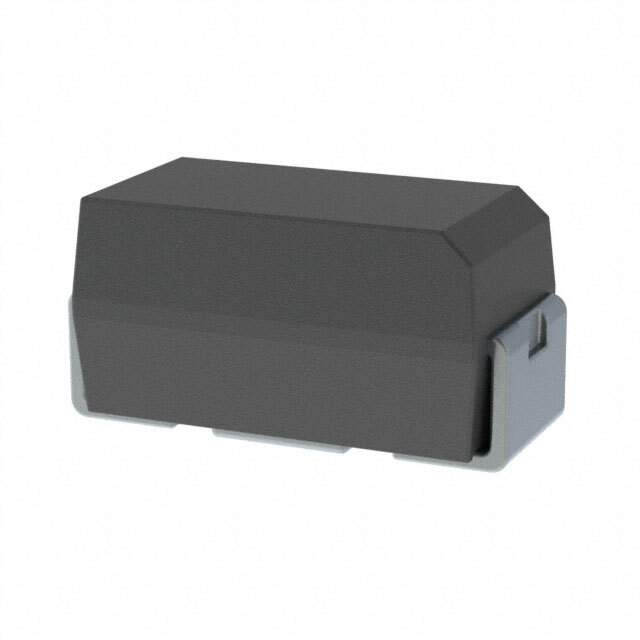

Same model may have multiple batches, images only for reference.

T520A106M010ATE080

Name: T520A106M010ATE080
Brand: Kemet
SKU: 1330237
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	T520A106M010ATE080
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 10UF 10V 1206 / 10 µF Molded Tantalum Polymer Capacitor 10 V 1206 (3216 Metric) 80mOhm @ 100kHz
Datasheet	T520A106M010ATE080 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Manufacturer	Kemet
Packaging	Reel - TR
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	10 V
Type	Molded
ESR (Equivalent Series Resistance)	80mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	Surface Mount
Case / Package	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.071" (1.80mm)
Manufacturer Size Code	A
Features	General Purpose
Base Product Number	T520A
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	399-4788-6,399-4788-2,399-4788-1
Standard Package	2,000
Win Source Part Number	1330237-T520A106M010ATE080
Ultra Librarian 3D Model	Ultra Librarian T520A106M010ATE080 CAD Model

Alternative Products

Description

The T520A106M010ATE080 is a 10µF, 10V, ±20% tolerance tantalum polymer capacitor from Kemet.

Capacitance: 10µF
Voltage Rating: 10V
Tolerance: ±20%
Package / Case: 1206 (3216 Metric)
Height - Seated (Max): 0.071" (1.80mm)
Capacitor Type: Molded
ESR (Equivalent Series Resistance): 80mOhm @ 100kHz
Lifetime @ Temp.: 2000 hours @ 105°C
Application: General Purpose
