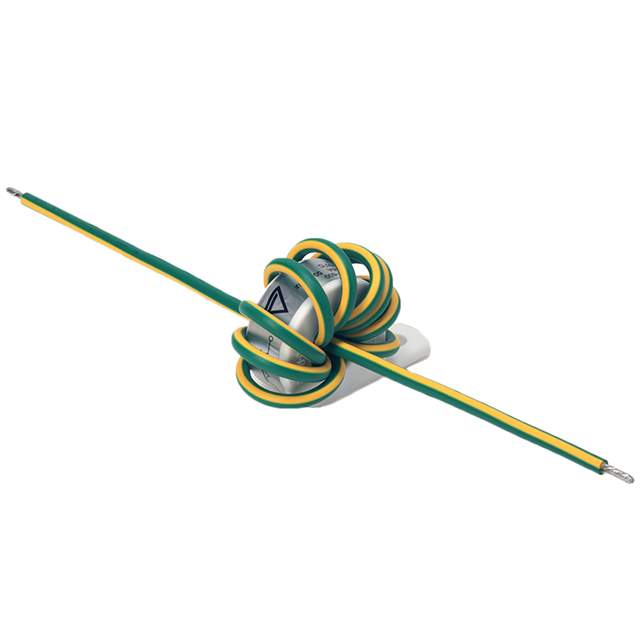

SNG-25DA-086

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SNG-25DA-086
Manufacturer	Kemet
Catalog	Fixed Inductors
Datasheet	SNG-25DA-086 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SNG
Type	Drum Core, Wirewound
Material - Core	Nickel Zinc Ferrite (NiZn)
Inductance	86 µH
Tolerance	-30%, +50%
Shielding	Unshielded
DC Resistance (DCR)	20mOhm Max
Temperature Range - Operating	-25°C ~ 105°C
Inductance Frequency - Test	160 kHz
Mounting Type	User Defined
Package / Case	Vertical, 2 Wire Leads
Dimension	1.535" Dia (39.00mm)
Height - Seated (Max)	0.945" (24.00mm)
Base Product Number	SNG-25
Other Names	399-SNG-25DA-086,UALSNG25DA0860
Standard Package	250
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272728-SNG-25DA-086
Ultra Librarian 3D Model	Ultra Librarian SNG-25DA-086 CAD Model

Alternative Products

Description

The SNG-25DA-086 is a fixed inductor with an inductance of 86 µH and a tolerance of -30%, +50%. It has a drum core, wirewound type and is unshielded. The inductor has a height of 0.945 inches and a diameter of 1.535 inches. It has a nickel zinc ferrite (NiZn) core material and a DC resistance of 20mOhm max. The SNG series inductor has a temperature range of -25°C to 105°C and can be user-defined for mounting type. It has a radial, vertical 2 wire leads package/case. The SNG-25DA-086 has an inductance frequency of 160 kHz and is suitable for use in various electronic applications.
