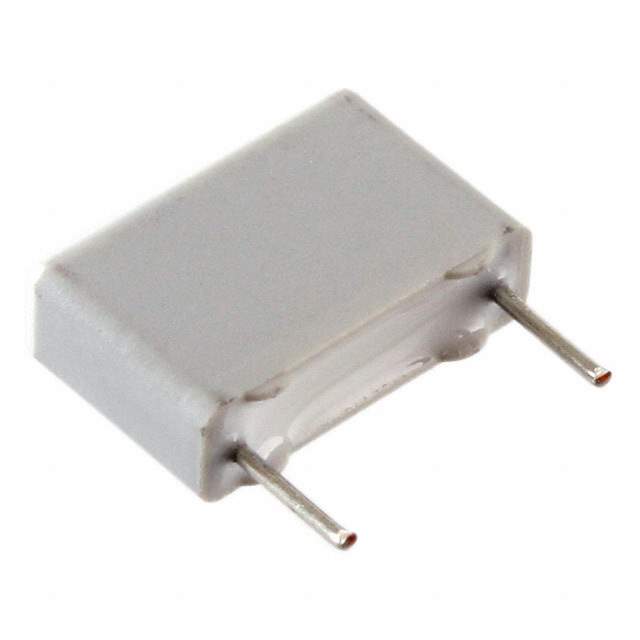

SMR10224J100A01L4BULK Real Image
Same model may have multiple batches, images only for reference.

SMR10224J100A01L4BULK

Part No SMR10224J100A01L4BULK
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMR
Package Bulk
Capacitance 0.22 µF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications General Purpose
Features High Temperature
Base Product Number SMR10
Other Names 399-7642,F211AG224J100C
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1302377-SMR10224J100A01L4BULK
Ultra Librarian 3D Model Ultra Librarian SMR10224J100A01L4BULK CAD Model

Description

The KEMET SMR10224J100A01L4BULK is a film capacitor used in general-purpose applications.

  • Capacitance: 0.22 microfarads
  • Tolerance: ±5 percent
  • Voltage Rating: 63V AC and 100V DC
  • Package: Bulk
  • Height: 0.354 inches
  • Type: Radial
  • Lead Spacing: 0.394 inches
  • Material: Polyphenylene Sulfide (PPS), Metallized
  • Temperature Range: -55 degrees Celsius to 150 degrees Celsius
