Same model may have multiple batches, images only for reference.

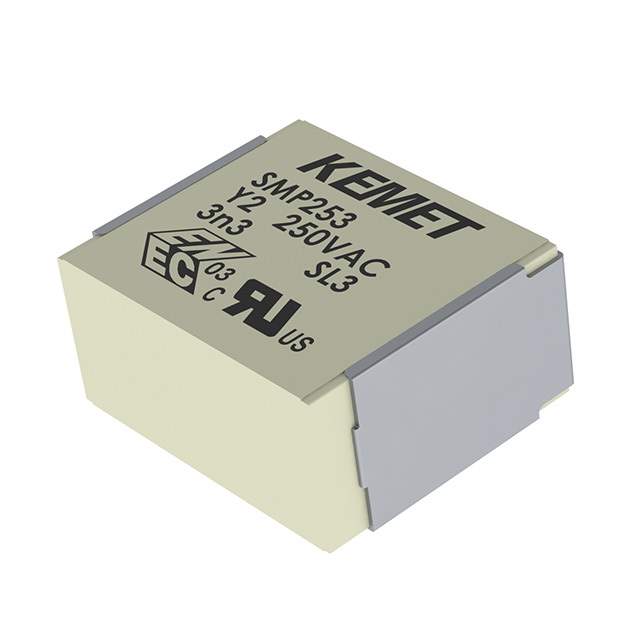

SMP253MA4390MTR24 Real Image
Same model may have multiple batches, images only for reference.

SMP253MA4390MTR24

Part No SMP253MA4390MTR24
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMP253
Package Tape & Reel (TR),Cut Tape (CT)
Capacitance 3900 pF
Tolerance ±20%
Voltage Rating - AC 250V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case Nonstandard SMD
Dimension 0.500" L x 0.453" W (12.70mm x 11.50mm)
Height - Seated (Max) 0.264" (6.70mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Ratings Y2
Base Product Number SMP253M
Other Names 399-SMP253MA4390MTR24CT,399-SMP253MA4390MTR24TR
Standard Package 600
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1302398-SMP253MA4390MTR24
Ultra Librarian 3D Model Ultra Librarian SMP253MA4390MTR24 CAD Model

Description

The SMP253MA4390MTR24 from KEMET is a film capacitor electronic component that is part of the SMP253 series.

  • Voltage Rating (AC): 250V
  • Voltage Rating (DC): 1500V (1.5kV)
  • Capacitance: 3900 pF
  • Tolerance: ±20%
  • Rating: Y2
  • Package/Case: Non-standard SMD
  • Height Seated: 0.264" (6.70mm)
  • Dimension: 0.500" L x 0.453" W (12.70mm x 11.50mm)
