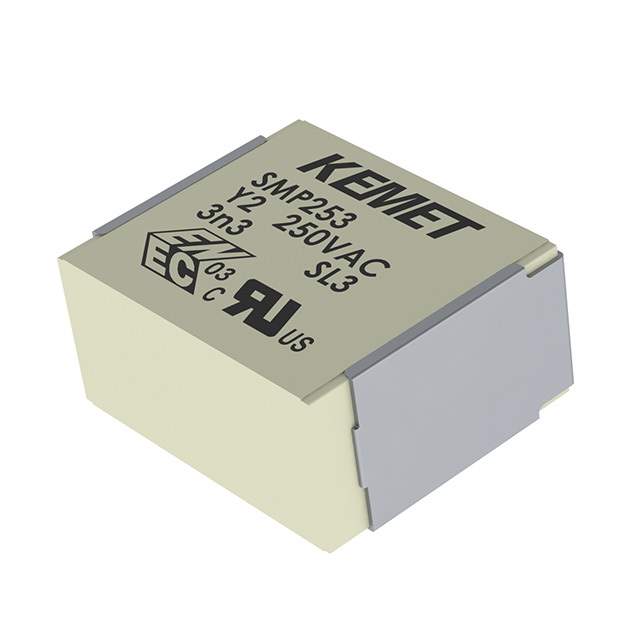

SMP253MA4220MTR24 Real Image
Same model may have multiple batches, images only for reference.

SMP253MA4220MTR24

Part No SMP253MA4220MTR24
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2200PF 20% 1.5KVDC SMD / 2200 pF Film Capacitor 250V 1500V (1.5kV) Paper, Metallized Nonstandard SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMP253
Package Tape & Reel (TR),Cut Tape (CT)
Capacitance 2200 pF
Tolerance ±20%
Voltage Rating - AC 250V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case Nonstandard SMD
Dimension 0.500" L x 0.453" W (12.70mm x 11.50mm)
Height - Seated (Max) 0.264" (6.70mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Ratings Y2
Base Product Number SMP253M
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-SMP253MA4220MTR24CT,399-SMP253MA4220MTR24TR
Standard Package 600
Win Source Part Number 1074716-SMP253MA4220MTR24
Ultra Librarian 3D Model Ultra Librarian SMP253MA4220MTR24 CAD Model

Description

The Kemet 1074716-SMP253MA4220MTR24 is a film capacitor that belongs to the SMP253 series of electronic components.

  • Product Design: to provide EMI and RFI suppression
  • Voltage Rating: 250V (AC) and 1500V (DC)
  • Package: non-standard SMD package
  • Capacitance: 2200 pF
  • Tolerance: ±20%
  • Dimension: 0.500" L x 0.453" W (12.70mm x 11.50mm)
  • Mounting: SMD (SMT) technology
  • Recommendation: It is recommended to use this product as per the manufacturer's guidelines for optimal performance.
