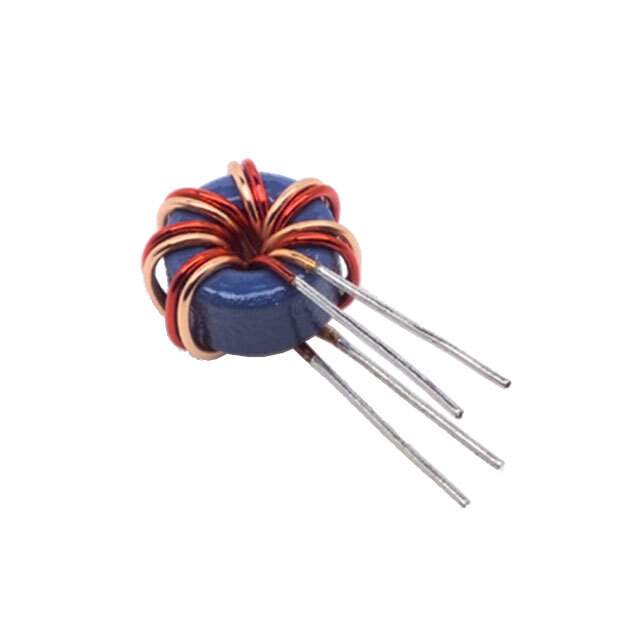

SHO-302 Real Image
Same model may have multiple batches, images only for reference.

SHO-302

Part No SHO-302
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SHO
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Through Hole
Dimension 0.433" Dia (11.00mm)
Height (Max) 0.433" (11.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Other Names UDLSHO03020000,399-19673
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276852-SHO-302
Ultra Librarian 3D Model Ultra Librarian SHO-302 CAD Model

Description

The KEMET common mode choke with Win Source Part Number 1276852-SHO-302 is a power line filter type component.

  • Voltage Rating: 50V DC
  • Current Rating: 4A
  • Height: 0.433 inches
  • Number of Lines: 2
  • DC Resistance (DCR): 10mOhm
  • Mounting Type: Through Hole
  • Temperature Range: -25°C to 70°C
  • Series Name: SHO
  • Standard Package: 1000
