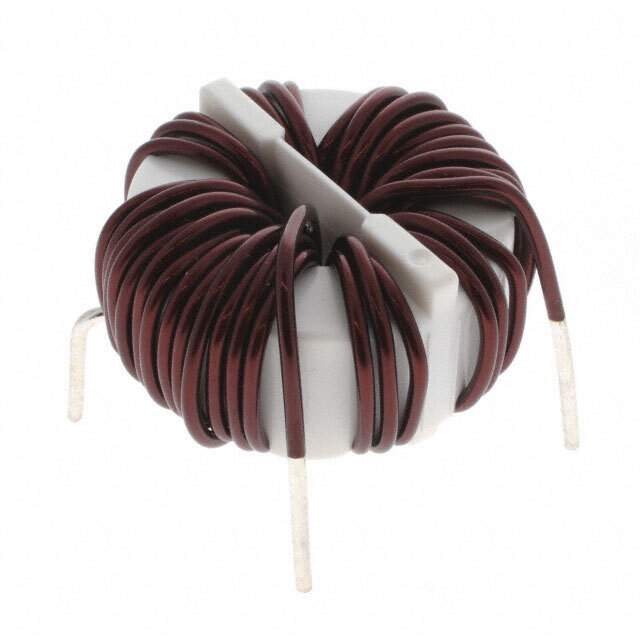

SC22-08-260 Real Image
Same model may have multiple batches, images only for reference.

SC22-08-260

Part No SC22-08-260
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.6 mH @ 1 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 30mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" Dia (30.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC22-08
Other Names 399-SC22-08-260
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277058-SC22-08-260
Ultra Librarian 3D Model Ultra Librarian SC22-08-260 CAD Model

Description

The SC22-08-260 Common Mode Choke is a perfect solution for your electronic projects. The product is manufactured by KEMET and has a Win Source Part Number of 1277058-SC22-08-260.

  • Voltage Rating: 250V AC and 250V DC
  • Current Rating: 8A
  • Standard Package Quantity: 500
  • Mounting: Through-hole mountable
  • Temperature Range: -25°C to 120°C
  • Diameter: 1.181" (30.00mm)
  • Height: 0.827" (21.00mm)
  • HTSUS Code: 8548.00.0000
