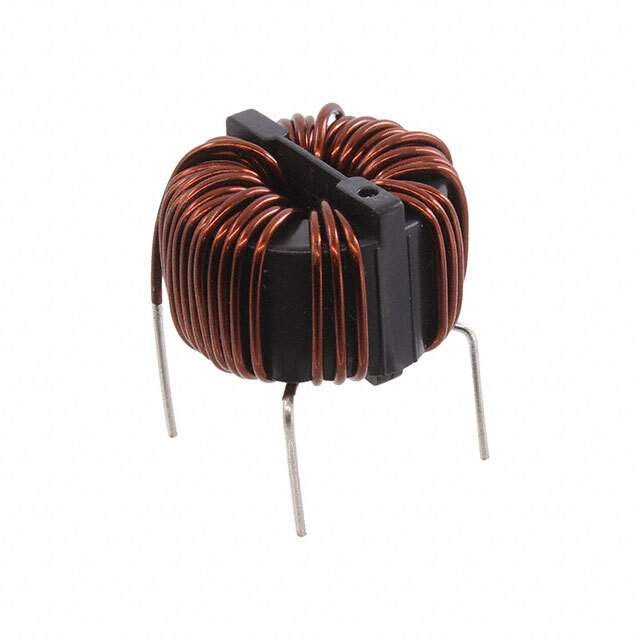

SC-08-100 Real Image
Same model may have multiple batches, images only for reference.

SC-08-100

Part No SC-08-100
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 25mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.378" Dia (35.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-08
Other Names UALSC081000000,399-SC-08-100
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277048-SC-08-100
Ultra Librarian 3D Model Ultra Librarian SC-08-100 CAD Model

Description

The Kemet SC-08-100 common mode choke is a power line filter type choke with a voltage rating of 250V for both AC and DC. The Kemet SC-08-100 common mode choke is perfect for use in industrial, power management, consumer electronics, and portable devices.

  • Voltage Rating: 250V for both AC and DC
  • Current Rating: 8A
  • Inductance: 3 mH @ 100 kHz
  • DC Resistance (DCR) (Max): 25mOhm
  • Temperature Range: -25°C to 105°C
  • Mounting: Through-hole technology
  • Packaging: Horizontal, no base, 4 PC pin
  • Height: 0.906" (23.00mm)
  • Diameter: 1.378" (35.00mm)
