Same model may have multiple batches, images only for reference.

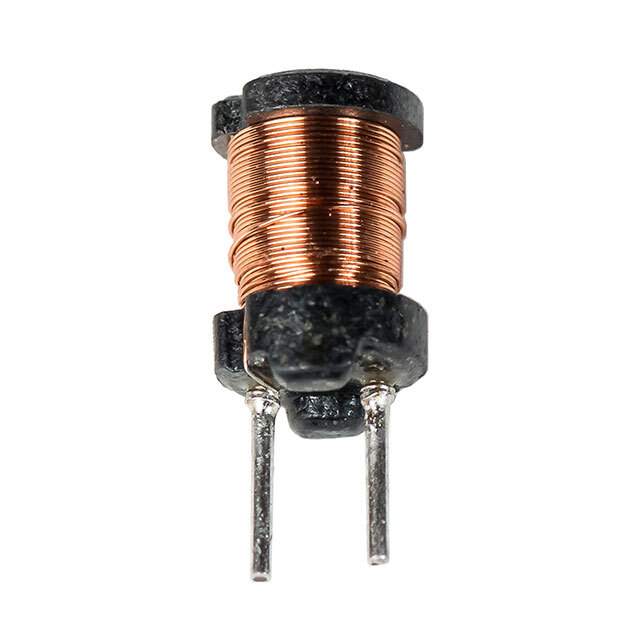

SBCP-47HY3R3B Real Image
Same model may have multiple batches, images only for reference.

SBCP-47HY3R3B

Part No SBCP-47HY3R3B
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SBCP
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 2.7A
Shielding Unshielded
DC Resistance (DCR) 37mOhm Max
Temperature Range - Operating -20°C ~ 105°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.295" (7.50mm)
Base Product Number SBCP-47HY
Other Names SBCP-47HY3R3B,UPIO47HY3R3B00,399-18987
Standard Package 6,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272809-SBCP-47HY3R3B
Ultra Librarian 3D Model Ultra Librarian SBCP-47HY3R3B CAD Model

Description

The SBCP-47HY3R3B is a drum core, wirewound inductor that is unshielded and has an inductance of 3.3 µH.

  • Manufacturer: Kemet
  • Type: drum core, wirewound
  • Shielding: unshielded
  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 37mOhm max
  • Material: ferrite
  • Current Rating: 2.3 A
  • Inductance Frequency Test: 10 kHz
  • Temperature Range: -20°C to 105°C
  • Package Type: radial, vertical cylinder (open)
  • Mounting: through a hole
  • Standard Package: 6,000
  • Dimension: 0.197" Dia (5.00mm)
