Same model may have multiple batches, images only for reference.

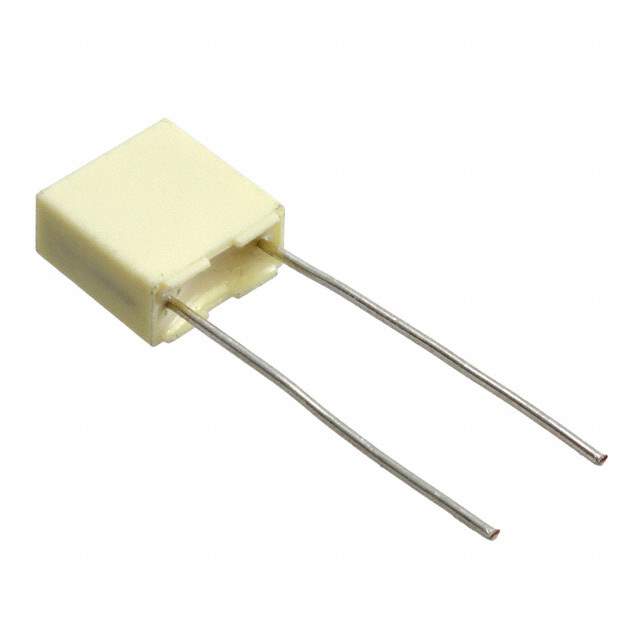

R82EC2470AA60J Real Image
Same model may have multiple batches, images only for reference.

R82EC2470AA60J

Part No R82EC2470AA60J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.047UF 5% 100VDC RAD / 0.047 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R82
Package Bulk
Capacitance 0.047 µF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.260" (6.60mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications Automotive
Ratings AEC-Q200
Base Product Number R82EC
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 82EC2470AA60J,399-5873
Standard Package 3,000
Win Source Part Number 961907-R82EC2470AA60J
Ultra Librarian 3D Model Ultra Librarian R82EC2470AA60J CAD Model

Description

The KEMET R82EC2470AA60J is a radial film capacitor with a capacitance of 0.047 µF.

  • Capacitance: 0.047 µF
  • Voltage Rating (AC): 63V
  • Voltage Rating (DC): 100V
  • Tolerance: ±5%
  • Height - Seated (Max): 0.260" (6.60mm)
  • Dimension: 0.283" L x 0.098" W (7.20mm x 2.50mm)
  • Manufacturer: KEMET
  • Win Source Part Number: 961907-R82EC2470AA60J
  • Application: Automotive
  • Temperature Range: -55°C to 105°C
