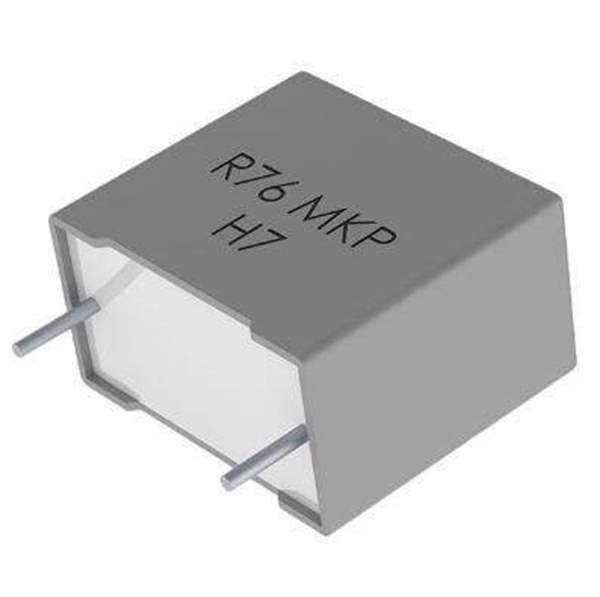

R76QD1100SE40J KEMET
Same model may have multiple batches, images only for reference.

R76QD1100SE40J

Part No R76QD1100SE40J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1000PF 5% 1KVDC RADIAL
Datasheet
R76QD1100SE40J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Packaging  Bulk
Part Status Active
Capacitance 1000 pF
Tolerance ±5%
Voltage Rating - AC 400V
Voltage Rating - DC 1000V (1kV)
Operating Temperature -55°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.358" (9.10mm)
Lead Spacing 0.295" (7.50mm)
Win Source Part Number WS1306602-R76QD1100SE40J
Ultra Librarian 3D Model Ultra Librarian R76QD1100SE40J CAD Model

Description

Benefits
• Voltage range: 250 – 2,000 VDC
• Capacitance range: 100 pF – 12 µF
• Lead Spacing: 7.5 mm – 37.5 mm
• Capacitance tolerance: ±2.5%, ±5%, ±10%
• Climatic category: 55/110/56 IEC 60068–1
• Operating temperature range of −55°C to +110°C
• RoHS compliance and lead-free terminations
• Tape & Reel packaging in accordance with IEC 60286–2
• Self-healing
• Automotive (AEC–Q200) grade up to lead spacing 22.5 mm
