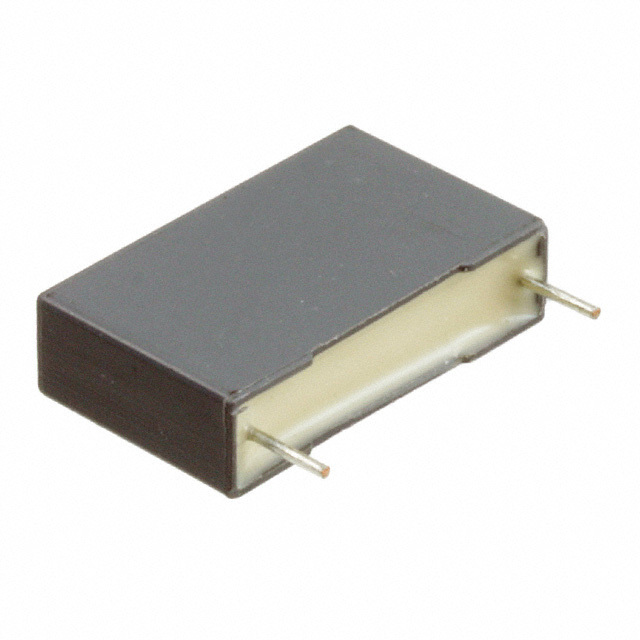

Same model may have multiple batches, images only for reference.
R747I1150AA00J Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R747I1150AA00J

Part No R747I1150AA00J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1500PF 5% 2KVDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 1500 pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Pulse, DV/DT
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1522155-R747I1150AA00J
Ultra Librarian 3D Model Ultra Librarian R747I1150AA00J CAD Model
