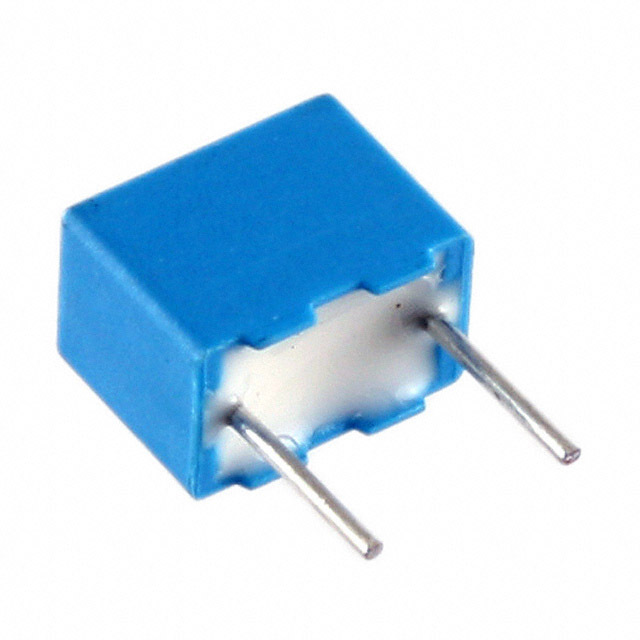

Same model may have multiple batches, images only for reference.
PMR209MB5470M047R30 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMR209MB5470M047R30

Part No PMR209MB5470M047R30
Manufacturer Kemet
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 47 OHMS/0.047UF TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 1
Resistance - Channel (Ohms) 47
Values R = 47Ohms, C = 0.047µF
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications General Purpose
Voltage - Rated 250VAC
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.728" L x 0.287" W (18.50mm x 7.30mm)
Height 0.512\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1521505-PMR209MB5470M047R30
Ultra Librarian 3D Model Ultra Librarian PMR209MB5470M047R30 CAD Model
