Same model may have multiple batches, images only for reference.

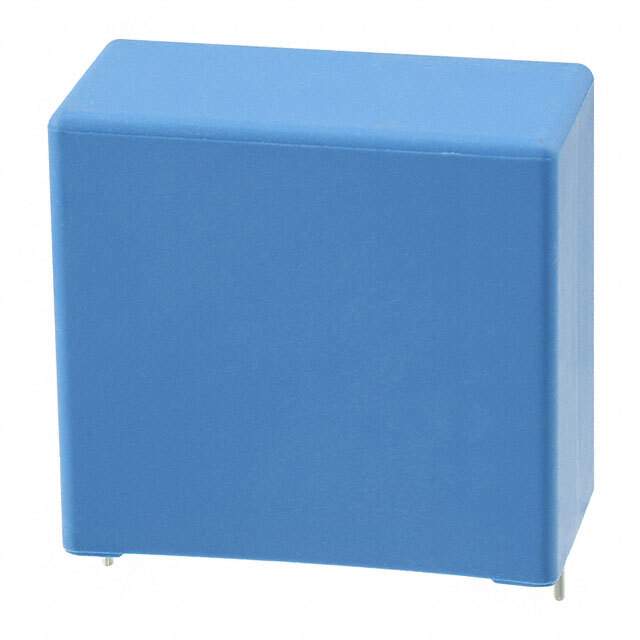

PHE845VR6470MR06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE845VR6470MR06L2

Part No PHE845VR6470MR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.47UF 20% 1.5KVDC RAD / 0.47 µF Film Capacitor 760V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE845
Package Tray
Capacitance 0.47 µF
Tolerance ±20%
Voltage Rating - AC 760V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.614" L x 0.650" W (41.00mm x 16.50mm)
Height - Seated (Max) 1.260" (32.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
Ratings X1
Base Product Number PHE845
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Other Names 399-12796,F845RK474M760C
Standard Package 105
Win Source Part Number 1074473-PHE845VR6470MR06L2
Ultra Librarian 3D Model Ultra Librarian PHE845VR6470MR06L2 CAD Model

Description

The Kemet Film Capacitor is a reliable choice for your electronic needs.

  • Capacitance: 0.47 µF
  • Voltage Rating (AC): 760V AC
  • Voltage Rating (DC): 1500V DC
  • Tolerance: ±20%
  • Lead Spacing: 1.476" (37.50mm)
  • Package/Case: Radial
  • Temperature Range: -40°C to 105°C
  • Manufacturer: Kemet
  • Win Source Part Number: 1074473-PHE845VR6470MR06L2
