Same model may have multiple batches, images only for reference.

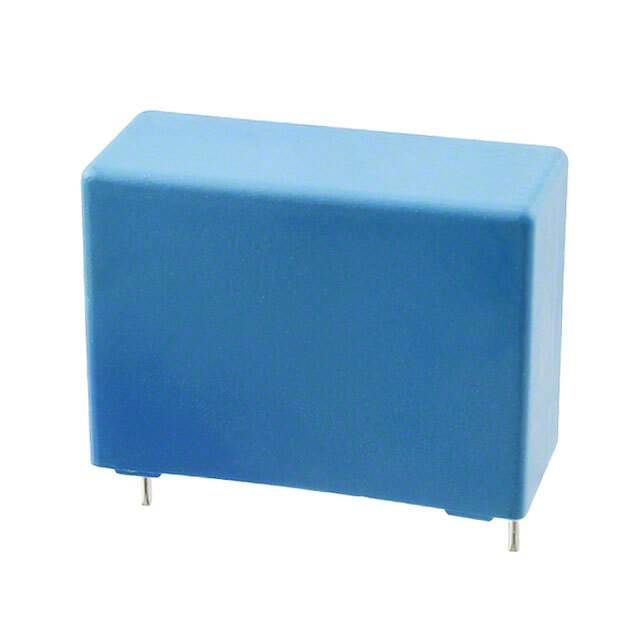

PHE840MZ7100MF11R06 Real Image
Same model may have multiple batches, images only for reference.

PHE840MZ7100MF11R06

Part No PHE840MZ7100MF11R06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 760VDC RADIAL
Datasheet
PHE840MZ7100MF11R06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.413" W (31.50mm x 10.50mm)
Height - Seated (Max) 0.807" (20.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209919-PHE840MZ7100MF11R06
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MZ7100MF11R06 CAD Model

Description

The KEMET PHE840MZ7100MF11R06 is a film capacitor designed for EMI and RFI suppression.

  • Capacitance: 1μF
  • Tolerance: ±20%
  • Voltage Rating: 275V AC and 760V DC
  • Size: 1.240" L x 0.413" W (31.50mm x 10.50mm)
  • Lead Spacing: 1.083" (27.50mm)
  • Safety Rating: X2 safety rated
  • Package: mounted through a radial package
  • Height (Seated): 0.807" (20.50mm) when seated
  • Operating Temperature: rated for use in temperatures ranging from -55°C to 105°C
  • Supply and Demand: balanced.
