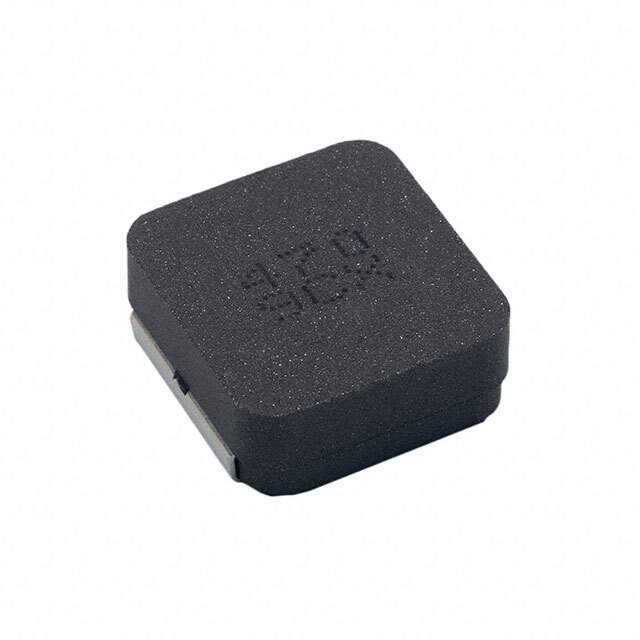

Same model may have multiple batches, images only for reference.

MPXV1D1054L470

Name: MPXV1D1054L470
Brand: Kemet
SKU: 1340409
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MPXV1D1054L470
Manufacturer	Kemet
Catalog	Fixed Inductors
Description	FIXED IND 47UH 3.7A 128.8MOHM SM / 47 µH Shielded Inductor 3.7 A 128.8mOhm Max Nonstandard
Datasheet	MPXV1D1054L470 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	KEMET
Series	MPXV
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	47 µH
Tolerance	±20%
Current Rating (Amps)	3.7 A
Current - Saturation (Isat)	4.6A
Shielding	Shielded
DC Resistance (DCR)	128.8mOhm Max
Frequency - Self Resonant	4MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.425" L x 0.394" W (10.80mm x 10.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Base Product Number	MPXV1D1054
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1340409-MPXV1D1054L470
Ultra Librarian 3D Model	Ultra Librarian MPXV1D1054L470 CAD Model

Alternative Products

Description

The Kemet MPXV1D1054L470 is a fixed inductor that has an inductance of 47 µH and a current rating of 3.7A.

Inductance: 47 µH
Current Rating: 3.7A
Tolerance: ±20%
AEC-Q200: Yes
Package/Case: Nonstandard
Mounting Type: Surface Mount
Shielding: Shielded
Size: 0.425 inches L x 0.394 inches W
Operating Temperature: -55°C to 155°C
Standard Package: 500
