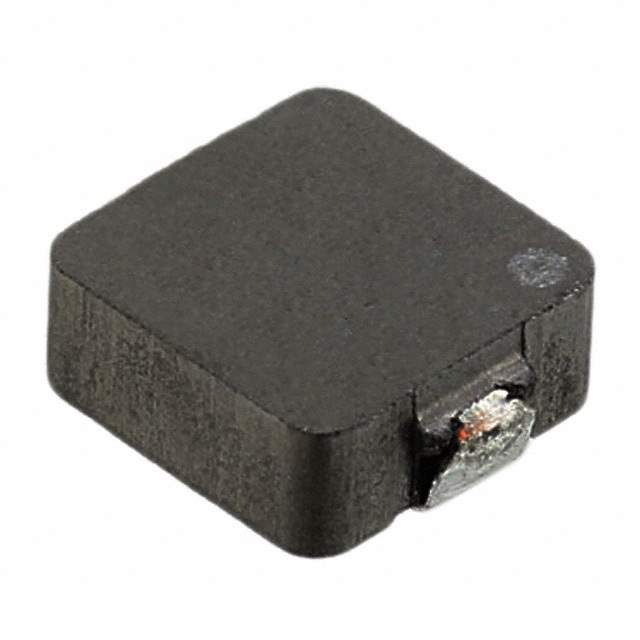

MPCH0730LR12

Part No MPCH0730LR12
Manufacturer Kemet
Catalog Fixed Inductors
Description FIXED IND 120NH 31A 0.65MOHM SMD / 120 nH Shielded Inductor 31 A 0.65mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series MPCH
Package Tape & Reel
Material - Core Metal Composite
Inductance 120 nH
Tolerance ±20%
Current Rating (Amps) 31 A
Current - Saturation (Isat) 32A
Shielding Shielded
DC Resistance (DCR) 0.65mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.264" W (8.00mm x 6.70mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number MPCH0730
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 399-10943-1,UPIC0730LR1200,399-10943-2,399-10943-6
Standard Package 1,000
Win Source Part Number 1080089-MPCH0730LR12
Ultra Librarian 3D Model Ultra Librarian MPCH0730LR12 CAD Model

Description

The MPCH0730LR12 is a fixed inductor with a shielding package designed for use in electronic devices that require high-frequency filtering.

  • Inductance: 120 nH
  • DC Resistance: 0.65mOhm
  • Manufacturer: KEMET
  • Applications: power supplies, DC-DC converters, and LED lighting.
