Same model may have multiple batches, images only for reference.

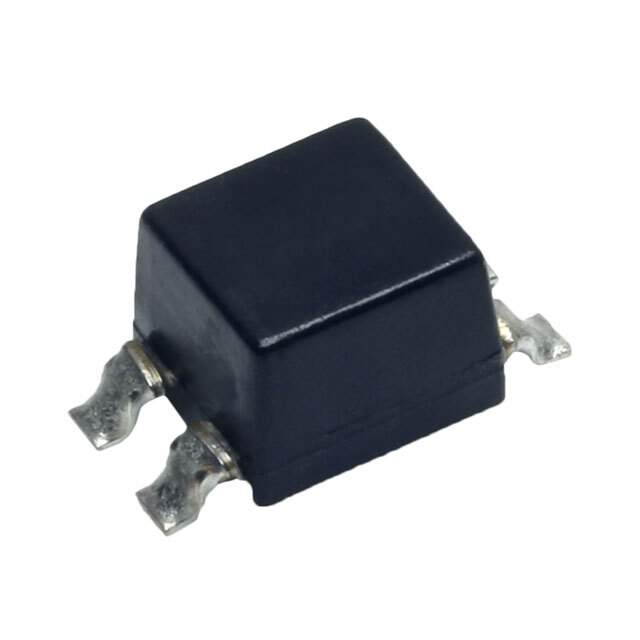

M-522CT Real Image
Same model may have multiple batches, images only for reference.

M-522CT

Part No M-522CT
Manufacturer Kemet
Catalog Common Mode Chokes
Description DC Line Fileters | CMC, SMD, 200OHM, 100MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Kemet
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 200 Ohms at 20MHz
Inductance at Frequency 200μH at 20MHz
Current Rating (Maximum) 1A
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 85°C
Mounting Style SMD
Parts Dimension 0.197" L x 0.217" W (5.00mm x 5.50mm)
Height (Maximum) 0.165" (4.20mm)
Manufacturer Package Vertical, 4 Gull Wing
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1210731-M-522CT
Manufacturer Homepage www.nec.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian M-522CT CAD Model

Description

The Kemet 1210731-M-522CT is a signal line filter designed for use in automotive applications.

  • Lines: Two
  • Impedance: 200 ohms @ 20 MHz
  • Voltage Rating: 50 VDC
  • Current Rating: 1 A
  • Package: Vertical, 4 gull-wing
  • Height: 0.165 inches (4.20 mm)
  • Mounting Technology: Surface Mount Technology (SMT)
  • Operating Temperature: -25°C to 85°C
  • Popularity: Medium
  • REACH: Unaffected
  • ECCN: EAR99
