Same model may have multiple batches, images only for reference.

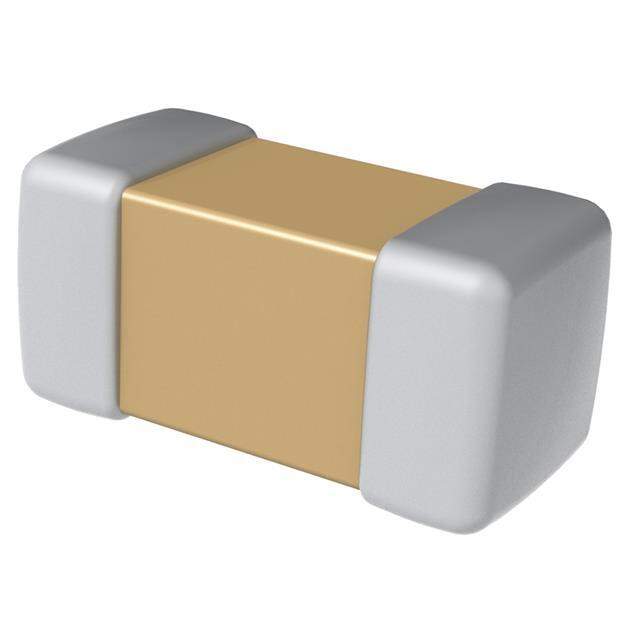

CBR04C509B1GAC Real Image
Same model may have multiple batches, images only for reference.

CBR04C509B1GAC

Part No CBR04C509B1GAC
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 5PF 100V C0G/NP0 0402 / 5 pF ±0.1pF 100V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Datasheet
CBR04C509B1GAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series CBR-SMD RF C0G
Package Tape & Reel
Capacitance 5 pF
Tolerance ±0.1pF
Voltage - Rated 100V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss, Ultra Low ESR
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
Base Product Number CBR04C
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
California Prop 65 Warning Information
Win Source Part Number 1339658-CBR04C509B1GAC
Ultra Librarian 3D Model Ultra Librarian CBR04C509B1GAC CAD Model

Description

The CBR04C509B1GAC is a 5pF ceramic capacitor from KEMET.

  • Series: CBR-SMD RF C0G
  • Capacitance: 5pF
  • Voltage Rating: 100V
  • Tolerance: ±0.1pF
  • Temperature Coefficient: C0G, NP0
  • Operating Temperature: -55°C to 125°C
  • Package / Case: 0402 (1005 Metric)
  • Application: RF, microwave, and high-frequency applications
